An electronic urinal flushing system for use with single stall urinals or wide trough urinals such as those used in schools. A full flush is activated automatically by the users departure from the urinals and does not require the user to operate any controls. Can be used with either low or mains pressure water supply.
General Details
Safety and Usage Advice
Refer to the manufacturer or supplier manual for maintenance, safety details and warnings.
Extra product information
Features

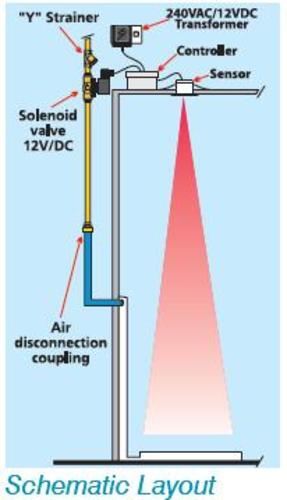

Sensors may be mounted overhead for wide trough public urinals to avoid vandalism, or on walls at chest height for single stall facilities. A stainless steel cover is available for wall mounted sensors and is installed flush with the wall.
The wall mounted sensor beam may be adjusted for sensitivity between 400mm and 700mm from the wall.
The overhead sensing beam is adjustable for ceiling heights between 2m and 3m and for a sensor beam width between 400mm and 1800mm.
For long inactive periods, such as overnight, the Flushatronic flushes every six hours to maintain hygiene and odour control and keep drainage traps moist.
To prevent excess water usage the Flushatronic waits five seconds after movement is detected in the area to activate a small pre flush designed to wet the urinal and prevent splash back. This prevents activation by people in the area who are not using the urinal.
The full flush mechanism is not activated immediately after a second or third user but is activated after the fourth user completes using the urinal.

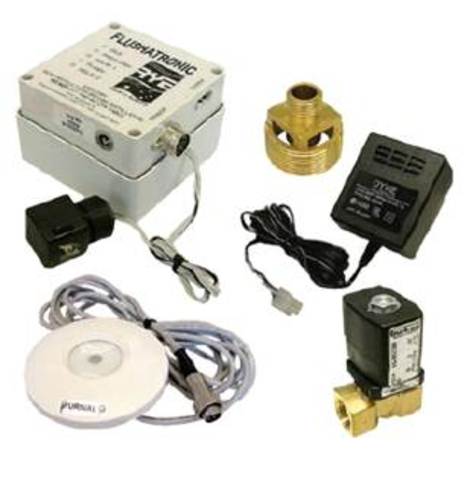

Low pressure solenoid valves are provided for low pressure systems.
===
Sensors may be mounted overhead for wide trough public urinals to avoid vandalism, or on walls at chest height for single stall facilities. A stainless steel cover is available for wall mounted sensors and is installed flush with the wall.
The wall mounted sensor beam may be adjusted for sensitivity between 400mm and 700mm from the wall.
The overhead sensing beam is adjustable for ceiling heights between 2m and 3m and for a sensor beam width between 400mm and 1800mm.
For long inactive periods, such as overnight, the Flushatronic flushes ever six hours to maintain hygiene and odour control and keep drainage traps moist.
To prevent excess water usage the Flushatronic waits five seconds after movement is detected in the area to activate a small pre flush to wet the urinal and prevent splash back. This prevents activation by people in the area who are not using the urinal.
The full flush mechanism is not activated immediately after a second or third user but is activated after the fourth user completes using the urinal.
The Low pressure solenoid valves are provided for low pressure systems.
Manufacturer/Country
Contact Supplier for Details
Warranty
Contact Supplier for Details
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
Models / Specifications
Model Flushatronic Urinal Wide Trough Flushing System: One model only
