Sunrise Medical Zippie IRIS Childrens Manual Wheelchair (PR12693)

https://ilcaustralia.org.au/products/12693

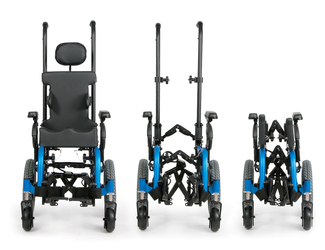

An aluminium manual wheelchair frame for children which may be self- or attendant-propelled. The tilt in space is designed to retain the position of the occupant's centre of gravity and can tilt to sixty degrees. The frame allows for adjustable seat frame width, seat frame depth, limits on tilt, backrest angle, attendant push handle height and angle and axle position for seat to ground height. Options can allow for variations in size and angle of footplates, armrests and backrest height. Can be purchased with an optional folding mechanism to improve transportability. This wheelchair is designed for alternative seating to be added to the frame

General Details

Crash Test Information for Wheeled mobility devices

This wheeled mobility device meets the design requirements and has been successfully crash tested in accordance with ANZS/ISO 7176-19:2008 MOD. This standard relates to the design requirements specified for a wheeled mobility device to be used to transport an individual in a motor vehicle.

Manufacturer/Country

Sunrise Medical / United States of America

Websites

Sunrise Medical - http://www.sunrisemedical.com.au/products/zippie/childrens-wheelchairs/iris.aspx

Features

Accessories

• Wheelchair accessories:
  • anti-tips
  • back pack
  • positioning belts
  • spoke guards
  • sun canopy
  • tray table
  • under seat bag

Transport and Dismantling

• Wheelchair transport:
  • backrest can be folded down for transport
  • folds for transport
  • seat can be removed for transport
  • secure by transport approved tie down points for user sitting in the wheelchair

Brakes

• Manual Wheelchair brake options:
  • foot operated brakes
  • lever type
• Manual Wheelchair brakes:
  • push to lock

Wheels

• Wheelchair tyre options:
  • foam filled
  • solid
• Wheelchair castor options:
  • light-up microcellular
  • pneumatic
  • semi-pneumatic
• Wheelchair tyres:
  • pneumatic
  • quick release axles
• Wheelchair castors:
  • solid

Footplates

• Wheelchair footplate options:
  • angle adjustable
  • extension
  • heel loops
  • lift up platform
  • one piece
  • toe loops
• Wheelchair footplates:
  • height adjustable
  • lift up
  • swing away
  • two piece

Legrests

• Wheelchair legrest options:
  • angle adjustable
  • articulating
  • elevating (manual)
  • heavy duty
  • impact guards
  • removable
  • stump supports
• Wheelchair legrests:
  • leg strap
  • length adjustable
  • removable
  • swing away

Armrests

• Wheelchair armrest options:
  • contoured
  • depth adjustable
  • fixed height
  • full length
  • gutter arm supports/troughs
  • height adjustable
  • lift up
  • padded
  • sideguards
• Wheelchair armrests:
  • desk length
  • height adjustable

Headrest

• Wheelchair headrest options:
  • depth adjustable
  • fully customisable (the wheelchair is compatible with a large range of headrests)
  • height adjustable
  • removable

Backrest

• Wheelchair backrest:
  • aluminium
  • folds down onto the seat for transport
  • no backrest (a large range of backrests can be fitted)
• Wheelchair backrest options:
  • angle adjustable (manually)
  • a range of off-the-shelf backrest options available
  • contoured
  • fixed lateral supports
  • height adjustable
  • padded
  • shock absorber
  • stabiliser bar
  • swing away lateral supports

Seat

• Wheelchair seat options:
  • depth adjustable
  • height adjustable
  • no seat (a large range of seating systems can be fitted)
  • width adjustable
• Wheelchair seat:
  • flat seat pan (for use with a large range of cushions)

Frame

• Manual Wheelchair frame:
  • aluminium
  • rigid
  • tilt in space
• Manual Wheelchair frame options:
  • approved tie down points
  • folding
  • one arm drive
  • self propelling
  • transit

Models / Specifications

Model Zippie Iris Childrens Manual Wheelchair: One model only

• Height of Backrest 405 mm - 610 mm (depending on configuration)
• Height of Seat 320 mm - 480 mm (-40 mm from this for drop down seat option)
• Length Overall 650 mm
• Angle of Backrest -5 degrees - 30 degrees (Anterior to postetior)
• Depth of Seat 255 mm - 460 mm (Depth-adjustable seat pan)
• Diameter of Rear Wheel 12.0, 16.0, 20.0, 22.0, or 24.0 inch
• Height of Maximum Kerb for Climbing 100 mm
• Load Capacity (supplier stated) 68 kg (not including seating or accessories)
• Weight 16 kg (Without footrests and other accessories)
• Width of Seat 255 mm - 460 mm (Optional width-adjustable seat pan)
• Diameter of Castor 4.0, 5.0, 6.0, or 8.0 inch
• Length from Seat to Footrest 90 mm - 510 mm
• Climbing Grade (angle) 6 degrees
• Width Overall 445 mm (Standard configuration)
• Height of Armrest 255 mm - 405 mm
• Weight of Heaviest Part 16 kg (Frame)
• Angle of Legrest Hanger 60.0, 70.0, 80.0, or 90.0 degrees
• Camber of Wheels 0 degrees
• Angle of Tilt 0 degrees - 55 degrees (Plus or minus 5 degrees. 0 to 40 degrees for reclining backrest.)
