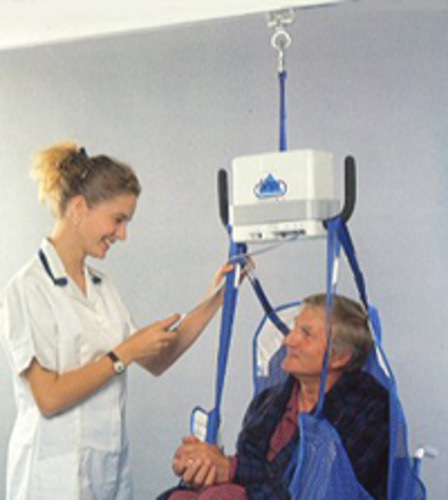

An overhead fixed track powered hoist with spreader bar attachment that may be used to lift and transfer people from the floor, or in a seated or lying position. Suitable for institutional or domestic use. Available in mains or battery powered models with manual or powered traverse. A portable and heavy duty model is available. Three choices of lifting capacity are available.
General Details
Extra product information
SUGARGLIDER NOMAD
CONTROLS: Handheld push button control. Ergonomic design.
TRACKING: Multiple track locations in a single dwelling e.g. bedroom, bathroom, lounge. Can be used on freestanding portable gantry.
SPREADER BAR: Curved design for extra head room. 4 point suspension integrated into the lifting motor.
POWER & CHARGING: Battery powered. Charging can be done through hand control. High battery performance with 70 + lifts per charge capacity.
GENERAL FEATURES: Lift speed 35mm/s with soft stop/start function to prevent abrupt movements. Splash proof casing.
SAFETY FEATURES: Equipped with emergency lowering and stop, secured against overloading, a counter registers number of lifts. Light and sound signal indicate when hoist needs to be recharged. There is also a light to indicate when the hoist requires a service.
SUGARGLIDER SG
TRACKING: The tracks are fully customised and can be mounted within a room or throughout a house. A single track is mounted on the ceiling, constructed from extruded aluminium, with a white coating. The track can be installed in straight, intersecting, and curved lengths [XY].
CONTROLS: Hand held on an extendable cord and attached to the hoist unit. They can be used by attendant or occupant.
POWER: 2 x 12v batteries which are sealed, maintenance free and concealed within the hoist unit.
BATTERIES: Battery Recharging
The hoist is returned to the end of the tracking for charging. Charging is fully automatic via 240 volt mains power. A green indicator light on the hoist unit indicates when batteries are charging.
SAFETY: . weight overload limiting device prevents the safe load capacity being exceeded
. visual and audible low battery warning
. emergency locking motor to prevent the user being lowered unintentionally
. emergency stop pull toggle [suspended from hoist unit]
. emergency lowering pull toggle in case of battery failure
Options
Nomad accessories:
Ceiling hoist arm reacher (7422)

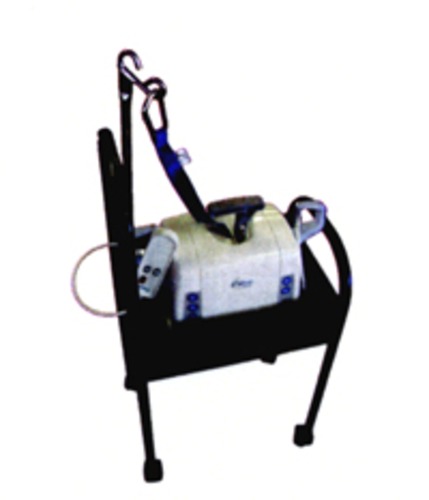

Nomad transport trolley (7426)
Tracking:
Manual turntable (2150400021)
Powered turntable (2150400022)
90 degree bend track
45 degree bend track
15 degree bend track
Track end caps
Track end stop kit
Track joiners
Track brackets
5.0MT track
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
Models / Specifications
Model Sugarglider 450T: electric lift, powered traverse, 200kg SWL
Model Sugarglider 625T: electric lift, powered traverse, 285kg SWL
Model Sugarglider Nomad : Portable unit, 230kg SWL
- Load Capacity (supplier stated) 230 kg
- Weight 8 kg
- Length of Spreader Bar 520 mm
- Height of Spreader Bar 330 mm
- Width of Spreader Bar 198 mm
Model Sugarglider SG 450M: electric lift, manual traverse, 200kg SWL
- Load Capacity (supplier stated) 200 kg
Model Sugarglider SG 625M and 625T: electric lift, manual traverse, 285kg SWL
- Load Capacity (supplier stated) 285 kg
Model Sugarglider Twin: Heavy duty model, not portable, 400 SWL
- Load Capacity (supplier stated) 400 kg
