Dorma Automatic Swing Door Controls (PR13055)
Model ED100-250
https://ilcaustralia.org.au/products/13055
A range of controls for swing doors,suiting either internal or external applications, available in either automatic or manual with automatic options. Each has an externally mounted drive unit.
General Details
- Extra product information
The automated door control systems are able to be tailored to the individual application in which it is being installed. Different models are available to suit external and internal doors of a large range of different environments, for example, medical, administration, restaurants, nursing homes and industrial settings. Suits a range of different doors, including fire doors, double doors and high usage entrances. Activation is either via push button, push and go (door automatically opens in response to the first push by the user) or remote hand held transmitter. These controls are able to be retro fitted if required.
- Installation
Installed by supplier.
- Options
Passive (proximity sensors) or manual activators
Safety sensors
Radio remote controls
Smoke detector systems
Fire door accessories- Manufacturer/Country
- Contact Supplier for Details
- Websites
- - http://www.dorma.com/au/en/products/opening_closing/automatic_swing_door_operators/ed_100_en/index-16490-16530-16531.html
Models / Specifications
- Model ED100 - Automatic Swing Door Operator: Door Weight to 100kg
-
- Width Overall 685 mm
- Height Overall 70 mm
- Depth Overall 130 mm
- Weight Overall 12 kg
- Load Capacity (supplier stated) 100 kg
- Model ED250 - Automatic Swing Door Operator: Door Weights to 250kg
-
- Width Overall 685 mm
- Height Overall 70 mm
- Depth Overall 130 mm
- Weight Overall 12 kg
- Load Capacity (supplier stated) 250 kg
- Model ED200i - Concealed in head swing door operator: In Head
-
- Angle 155 degrees (Max opening)
- Load Capacity (supplier stated) 100 kg (per door leaf)
- Model ED400ig - In ground swing door operator: In Ground
-
Suppliers (0)
Agents (0)
Importers (0)
Manufacturers (0)
Images

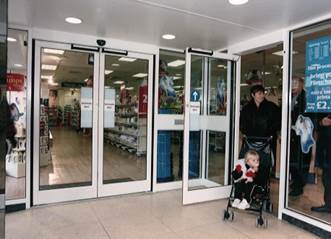

Model ED200i

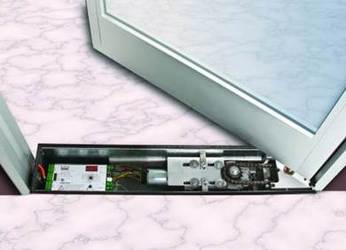

Model ED400i
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
Standards
Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing, and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For more information about standards see http://www.ilcaustralia.org.au/Using_Assistive_Technology/standards_regulation
