StaminaLift Bed and Trolley Mover (PR13277)
https://ilcaustralia.org.au/products/13277

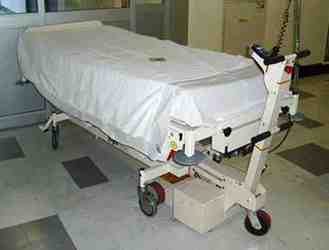

A mechanical, battery powered bed and trolley mover. It is able to grip, lift and move hospital beds, trolleys, wheelchairs, boats, trailers and factory carts. It can be operated by one person using a joystick control and has a small turning circle.
General Details
- Additional Specifications
Incline Capability - 10 degrees
- Caution
Before driving away, it is necessary to release the bed brake and steering lock and detach any surplus cords.
- Extra product information
The StaminaLift has a lift, grip and locking mechanism that allows positive locking and control of a hospital bed. It has an adjustable height handle, is key lockable, has an emergency stop button, and will move objects in excess of 500kg. The StaminaLift is able to negotiate inclines and traverse changes in floor surfaces.
It has gel filled, deep cycle 12v batteries, which can last up to 16 hours without charging, a simple plug-in battery charger and a safety plug to prevent drive off during charging operation. It has non-marking 150mm polyurethane wheels and a powder coated steel frame.
- Options
The standard StaminaLift bed and trolley mover can be fitted with a universal coupling to enable it to tow a wide range of general and laundry trolleys.
Additional charger units are available to allow multiple charging points.
- Method of Use
Drive the StaminaLift to the bed or trolley you want to move and activate the lifting mechanism control. The jaw will automatically lock itself to the bed or trolley and raise the end of the bed slightly, allowing the operator to drive the bed or trolley to its destination with the application of light finger pressure on the joystick. The joystick can be used to operated forward and backward motion, variable speed, lift and engagement of the lifting arm.
Brakes are automatically applied when the joystick is released to a neutral position.
It will hold a bed or trolley a ramp up to 10 degrees incline.- Manufacturer/Country
- Australia
Models / Specifications
- Model Bed and Trolley Mover: Bed and Trolley Mover
-
- Width Overall 500 mm
- Length Overall 800 mm
- Height Overall 1100 mm
- Load Capacity (supplier stated) 500 kg
- Clearance Under Unit 25 mm
- Weight Overall 90 kg
- Speed 0 kph - 5.2 kph
Suppliers (0)
Agents (0)
Importers (0)
Manufacturers (0)
Images
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
