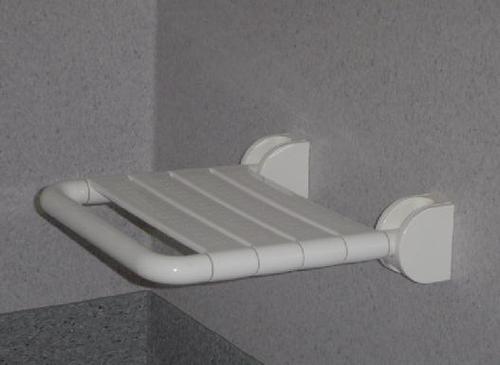

A wall mounted, folding shower seat consisting of an antibacterial protective nylon frame with a non-corrosive steel core, and seat bands made of nylon. Available in two sizes. The shower seat has cover caps for concealed fixing and steel reinforced hinges with a limiting device to allow the seat to be lowered gently into position. There is an automatic built-in stop in the lift-up position. The seat requires 80mm of space from the wall in the vertical position.
General Details
Additional Specifications
The seat consists of bands made of nylon with intermediate rings. The shower seat has cover caps for concealed fixing and steel reinforced hinges with a limiting device to allow the seat to be lowered gently into position. There is an automatic built-in stop in the lift-up position. The seat requires 80mm of space from the wall in the vertical position.
The frame is made of 34 mm diameter nylon with a non-corrosive steel core and has rounded edges. The seat has a steel reinforced folding mechanism.
The seat is available in primary red, green and yellow as well as white, greys, dark red and shades of blue
Options
Lift up shower seat with backrest
Suspended shower seat from grab rail, with backrest
Mounting plate and cover plate for installation on lightweight partition wall or perforated bricks
Normbau Microban antibacterial protection can be incorporated into the polymer structure of the nylon during the production process. The agent remains continually active to secure that the antibacterial effect remains for many years. With the agent distributed throughout the nylon there is no regeneration of the destroyed cell mass and the pathogenic germs are destroyed.
Extra product information
Lift up shower seat with backrest
Suspended shower seat from grab rail, with backrest
Mounting plate and cover plate for installation on lightweight partition wall or perforated bricks
Normbau Microban antibacterial protection can be incorporated into the polymer structure of the nylon during the production process. The agent remains continually active to secure that the antibacterial effect remains for many years. With the agent distributed throughout the nylon there is no regeneration of the destroyed cell mass and the pathogenic germs are destroyed.
===
The seat consists of bands made of nylon with intermediate rings. The shower seat has cover caps for concealed fixing and steel reinforced hinges with a limiting device to allow the seat to be lowered gently into position. There is an automatic built-in stop in the lift-up position. The seat requires 80mm of space from the wall in the vertical position.
The frame is made of 34 mm diameter nylon with a non-corrosive steel core and has rounded edges. The seat has a steel reinforced folding mechanism.
The seat is available in primary red, green and yellow as well as white, greys, dark red and shades of blue.
Installation
Must be installed by a qualified tradesperson. The seat must be secured appropriately to masonry, concrete or wall studs.
Shower Seats in Public Buildings
In any building which the Building Code of Australia requires compliance with AS1428.1, the fastenings, materials and construction of the seat must be able to withstand a force of 1100 N to comply with AS1428.1. The seat must be installed 470-480 mm above floor level
In a private residence the seat can be installed at a height to suit the individual requirements of the user.
===
Must be installed by a qualified tradesperson. The seat must be secured appropriately to masonry, concrete or wall studs.
Shower Seats in Public Buildings
In any building which the Building Code of Australia requires compliance with AS1428.1, the fastenings, materials and construction of the seat must be able to withstand a force of 1100 N to comply with AS1428.1. The seat must be installed 470-480 mm above floor level
In a private residence the seat can be installed at a height to suit the individual requirements of the user.
Manufacturer/Country
Normbau / Munich, Germany
Warranty
Contact Supplier for Details
Websites
- Normbau - http://www.normbau.de/en/Pages/Welcome.aspx
- - http://www.imaginebathrooms.com.au/smcms/wp-content/uploads/2012/04/Normbau-Brochure-300-Series-english-version1.pdf
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
Models / Specifications
Model NY.841.415: Large
- Depth 470 mm
- Width 480 mm
Model NY.841.015: Small
- Depth 410 mm
- Width 380 mm
