A mobile laundry trolley with a spring loaded mechanism to lift heavy linen bags on and off the trolley. It is mounted on a six castor configuration and features a rust proof frame made of PVC and nylon. The spring is made of high tensile strength steel. Comes in three models.
General Details
Extra product information
Models
250 litre capacity suitable for domestic use.
455 litre capacity suitable for commercial use.
Mechanism
Different spring tension available.
The spring mechanism assists in lifting a heavy laundry bag off the laundry trolley.
Method of Use
To load a full laundry bag, lower the platform by applying a downward pressure by hand. The spring will assist to lower the platform to desired height.
The spring assist does not lock in position, pressure need to be applied continuously on the platform while loading the laundry bag.
Load the laundry bag into the platform. The weight of the full laundry bag will hold the platform down.
Push trolley to transport laundry bag to destination.
To unload the laundry bag from the trolley, simply take if off the platform. The spring mechanism will help lift the full bag up.
Castors
Six wheel configuration for tracking and manoeuvrability.
2x 150 mm swivel (Fallshaw)
2x 150 mm non-braking swivel (Fallshaw)
2x 200 mm non-swivel tracking (Fallshaw
Factors to Consider
· May reduce manual handling of heavy laundry bags in both commercial and domestic setting.
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
Manufacturer/Country
Polymedic / Australia
Warranty
3 year warranty
Websites
- Polymedic - 250 Litre Auto Laundry Lifter - http://www.polymedic.com.au/shop/product/item21124/250-litre-auto-laundry-lifter.html?process=shop%2FproductView.php
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
Models / Specifications

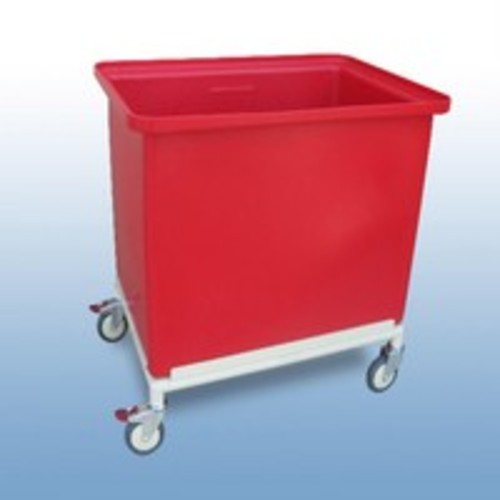

Model IT423: 340 litre Auto Laundry Lifter
- Width Overall 695 mm
- Length Overall 990 mm
- Capacity 340 l
- Diameter of Castor 125 mm
- Height Overall 880 mm
Model IT422nlw: 455 litre Auto laundry lifter
- Capacity 455 l
- Length Overall 1525 mm
- Diameter of Castor 150 mm - 200 mm
- Height Overall 910 mm
- Width Overall 725 mm
Model IT421nlw: 250 litre Auto Laundry Lifter
- Capacity 250 l
- Width Overall 610 mm
- Length Overall 1325 mm
- Height Overall 800 mm
- Diameter of Castor 150 mm - 200 mm
