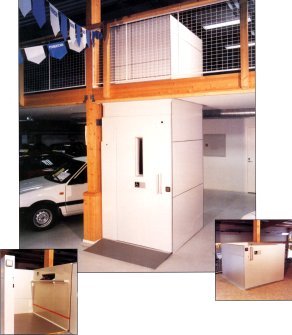

A mains powered, screw driven vertical lifting platform that transports a user, in a wheelchair or in a standing position, between levels. This lift is enclosed. Glazed panels are available. Indoor application only. Suitable for commercial use. A range of accessories are available.
General Details
Extra product information
This lift does not require a pit and can be installed directly on the floor. Operated by constant pressure push button controls. Controls are raised and written information is in an easy to read font in good colour contrast. Internal controls include constant pressure travel button, emergency stop and alarm. A hand rail is provided on both sides of the controls. A call button is provided for every floor.
Three door configurations are available - open through, single entry or adjacent.
In the case of power failure an emergency light activates automatically. Can be manually lowered using a manual crank handle.
Options
Fold down seat
Emergency telephone
Elbow contact (large push button that can be elbow operated)
School control system
Infra red control
Lock
Installation
Lifts which are to be installed in public buildings are required to conform to the Building Codes of Australia. For any such installation advice should be sought as to the requirements of the relevant and current codes.
Manufacturer/Country
Cibes Sweden/Australia
Warranty
Contact Supplier for Details
Websites
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
Models / Specifications
Model A5000: Platform lift with 1.1m high facia as standard.
- Height of Lift 13000 mm (Up to 13000mm (max 6 landings). Same for both models.)
- Height (minimum required) of Door 1100 mm (Height of gate. )
- Depth of Platform 1500 mm
- Load Capacity (supplier stated) 400 kg
- Width of Platform 1000 mm
Model A7000: Platform lift with a full height, 2.2m, facia.
- Width Internal 1100 mm
- Depth Internal 1500 mm
- Load Capacity (supplier stated) 400 kg
- Height (minimum required) of Door 2000 mm
