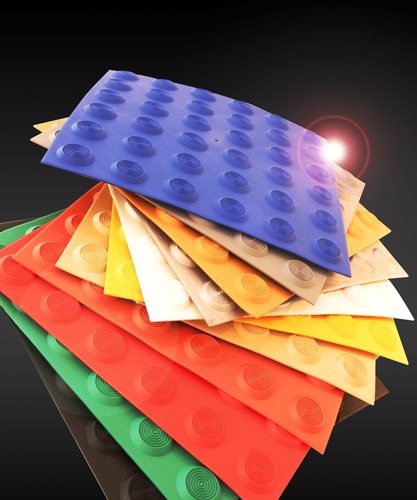

A tactile ground surface indicator with raised dots that is available as a PVC or ceramic tile. It can be used as potential hazard or directional indicators for people with visual impairment. They are designed for external or internal use, and are available in a range of colours and sizes

General Details

Extra product information

A plastic formulation, they are available as Type B hazard indicators and in a range of colours - black, yellow, blue, grey, beige, green, red and white. The tiles are slip resistant.
External use is dependant on the colour.

Type B Indicators: used as a warning to indicate potential hazard; defined configuration of in line raised dots 50mm ±1mm apart; each dot has base diameter of 35mm ±1mm and top diameter of 25mm ±1mm with overall height of 4mm to 5mm.

Note: Directional tiles available if there is sufficient demand.

Installation

These tiles must be installed professionally. When used as tactile ground surface indicators, they must be installed according to requirements specified in AS 1428.4 Design for access and mobility. Part 4: Tactile ground surface indicators for the orientation of people with vision impairment.

Manufacturer/Country

Western Australia

Warranty

Contact Supplier for Details

Standards Compliance

Standards Number
AS1428.4

Websites

Maintenance

Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.

Models / Specifications

Model Directional: 300 x 300 (ceramic)or 300 x 150 (PVC)mm

  • Width Overall 150.0 and 300.0 mm
  • Length Overall 300 mm
  • Thickness of Base 2.5 mm

Model Hazard: 300 x 300 (Ceramic and PVC) or 200 x 200 mm (PVC)

  • Length Overall 300.0 and 200.0 mm
  • Width Overall 300.0 and 200.0 mm
  • Thickness of Base 2.5 mm

Suppliers (1)

Select a state below to view suppliers located in that state. Some suppliers may distribute to other states or nationally. Please click the supplier's name for more information on that supplier.

There are no suppliers of this product.
Print this state's suppliers

All Suppliers

Nova Products Global (Canning Vale )

Supplier Code Price & Price Notes Hire? Repair? Availability
0.0 - 0.0 unknown unknown
