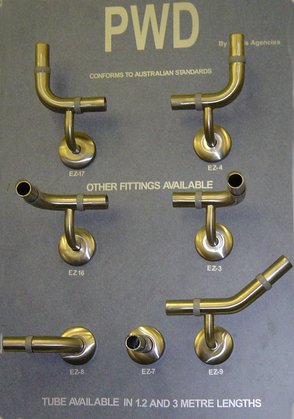

A modular stainless steel rail system designed to create customised grab rails from component parts. Fourteen system components combine with straight sections of rail secured with a plastic sleeve. Rails are wall mounted via a screwed flange. One finish is available. Can be customised. For use in wet and dry areas, for internal use and are able to be fitted into and around corners.
General Details
Extra product information
The system contains a number of left and right angled bends designed to be linked with straight sections of 32 mm diameter stainless steel rail. A variety of angles are available. Adjoining straight sections are attached via a plastic sleeve that locks over a thinner inner section of railing. Straight rail surfaces are available in Satin Stainless finish only and are available in two lengths which can be cut down to the size required by the installer.
They are wall mounted using a 75mm diameter flange that is screwed in three places in to the wall. The system has been designed to comply with AS1428.1 -1998.
Installation
Can be professionally or self installed.
Manufacturer/Country
Brisbane, Australia
Warranty
Contact Supplier for Details
Websites
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
Models / Specifications
Model Modular Rail System: 14 components available
- Diameter of Rail 32 mm
- Clearance from Wall 55 mm
