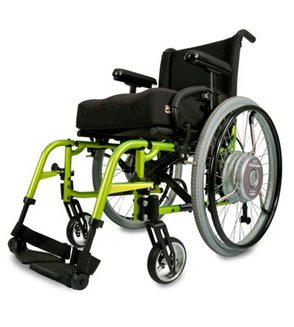

Sunrise Medical Quickie Xtender Power Assist Wheels (PR16008)

https://ilcaustralia.org.au/products/16008

Power assisted wheels which can replace standard rear wheels on certain models of Quickie wheelchairs. The wheels assist the user to self propel the wheelchair, by increasing the force the user applies to the push rings by four times.

General Details

Caution: Powered Wheelchairs & Scooters

This item should be trialled in the user's home environment to ensure maximum safety and independence. Environmental considerations include kerbs, footpaths, road, railway crossing, etc.
Users should take care when riding a scooter or powered wheelchair and observe the following safety guidelines:
• Users who intend to use scooters or powered wheelchairs must ensure they have the necessary physical and cognitive skills to operate and manoeuvre them safely
• Stay within the legal speed limit of 10km/h
• Be aware that taking medication or driving under the influence of alcohol may affect the user's judgement
• Always make sure that you are clearly visible, particularly at night or on dull days-use the lights and reflectors and install a reflective flag high enough to be seen by motorists
• Wear a bicycle helmet whenever possible
• Slow down when you are near other people, especially pedestrians and cyclists
• Avoid stopping or driving on inclines greater than your scooter or powered wheelchair is designed for
• Use footpaths if possible. If there are no foot paths, plan to user quieter roads
• Plan your trip and avoid uneven surfaces, dips and potholes
• Ensure if you are carrying parcels that the load will not over-balance your scooter or powered wheelchair and the parcels do not interfere with your controls or vision.

Extra product information

The power assisted wheels have an electric motor integrated into the wheel hub. When the wheelchair user applies force to the push rims, the motor engages and assists to propel the wheelchair. A small bracket is attached to the wheelchair frame to allow the powered wheels to be secured to the wheelchair. The on/off switch is located on an adjustable mount on the right hand side of the chair.
The batteries and wheels are removed without the need for tools. By pulling out the hub handle, the entire motor/wheel assembly is removed from the chair. The batteries form the inner part of the wheel hub. Each wheel hub houses one 24 volt battery. The control panel is on the exterior surface of the battery. The panel includes a battery level indicator and a push button to control the power level.

Wheels - can be either pneumatic or pneumatic with solid inserts.
Electronically Synchronized Wheels -The Quickie Xtender features an automatic wheel synchronization system which compensates for any arm strength imbalance the user may have.

Battery -A single 7 Ahr NiMH battery weighing 2.8kg powers the Quickie Xtender. This battery has its own charger and only takes 2 - 3 hours to charge. Additional backup batteries may also be purchased.

When the chair is brought to a stop, the wheels will not activate in the reverse direction. In addition to providing a power assist going up hills, the motor/gearing also acts as a break when traveling downhill.

BATTERY - single battery.

BATTERY CHARGER - comes with an independent charger. The battery takes 2-3 hours to charge.

Licensing and Insurance Requirements

You are legally required to advise your State licensing authority of any medical condition or disability that may impact on your driving. If not, you risk fines or legal action and your car insurance can be affected. You may need to provide medical reports or undergo driving tests. Modifications to your vehicle must be in line with the Australian safety and design rules. Fitting of wheelchair occupant restraints, child restraints and vehicle hoist ramps must meet relevant Australian Standards. Modifications should be done by suitably qualified vehicle modifiers. You will also need to inform your car insurer of any vehicle modifications. Your policy may become void if you do not do so. Contact the vehicle licensing / registration authority in your State for more information.

Safety and Usage Advice

Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.

Manufacturer/Country

Sunrise Medical / United States of America

Websites

Sunrise Medical Quickie Xtender Power Assist Wheels - http://www.sunrisemedical.com/special-pages/search-results?searchtext=xtender&searchmode=anyword

Features

Other Features

• Power add-on features:
  • power unit only

Battery

• Battery type:
  • Lithium
  • Nickel metal hydride
  • Removable

Type

• Power add-on type:
  • Power assist wheels

Models / Specifications

Model Quickie Xtender Power Assist: One model only

• Load Capacity (supplier stated) 120 kg
• Weight Overall 17 kg
• Diameter of Castor 100.0, 120.0, or 127.0 mm
• Weight of Heaviest Part 7.9 kg
• Diameter of Rear Wheel 600 mm
• Range (distance) 15 km - 27 km (Dependent on Nickel or Lithium Battery)

Suppliers (1)

• Aidacare - https://ilcaustralia.org.au/suppliers/12912

  See supplier website or your telephone directory for location of your nearest store.

  • Head office : 1300 216 898
  • Aidacare https://www.aidacare.com.au/
  • Online shop Mobility HQ https://www.mobilityhq.com.au/
