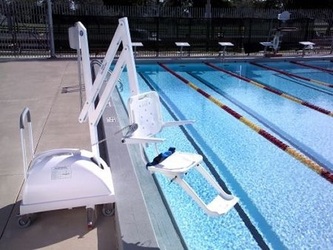

PAL Portable Aquatic Lift (PR16113)

https://ilcaustralia.org.au/products/16113

A powered (battery operated), portable pool hoist, suitable for commercial (public) or domestic (private) pools. The user is positioned in a plastic seat. The hoist lifts the person into and out of the pool, lowering the person into the water with a turning radius of 240 degrees. The hoist is user or attendant operated. The base must be customised to fit the pool. There is the option for a sling to be used with this pool hoist.

General Details

Caution

It is recommended that prior to using this product, training in manual handling and the correct use of this product should be undertaken.

Extra product information

The PAL does not require mounting to the pool deck or access to water or electricity supply except when recharging. This mobility allows the hoist to be positioned anywhere around the pool and then put away when not in use. The mobility of the PAL means the one hoist can be used in multi-pool facilities.

The base of each PAL must be measured and customised to fit the pool/s where it will be used prior to purchase.

The hoist is constructed of corrosion resistant materials which are powder coated aluminium and stainless steel. The hoist consists of a mast , boom and wheeled support base. The boom has a plastic seat attached. The seat has drainage holes in the seat base and backrest, and swing away arms to allow a side transfer.

The hoist raises and lowers via battery operation. A hand held control is used to lift and lower the boom. The hoist is rotated through 240 degrees, by pushing on the button on the water proof control unit attached to a cord. The hand control is submersible so can be left connected while the user is swimming. The control unit can be attendant or user operated. The PAL hoist is suitable for use with a below ground pool. Other models cater for above ground pools.

There is a 24 volt battery built in which is re-chargable. The battery is located in the base of the PAL and is removed to a wall mounted charger when required. The green light on the battery indicates a connection to a power source. The orange light on the battery indicates the battery is charging. When the battery is fully charged the orange light goes off.

Options

OPTIONAL EXTRAS
Seat pad

Spineboard attachment- The spine board attachment works with any standard spine board (not included). To use, remove the chair by pulling the attachment pin and replace with the spine board attachment.

All weather cover.

Stability Vest

Method of Use

1. Push the PAL to the edge of the pool so that the base is square.
2. Push down the foot brake on the wheels.
3. Push down and set the stabilisers against the pool deck.
4. Attendant presses button on control unit to position hoist chair for transfer.
5. User transfers independently or with assistance onto the hoist chair.
6. Attach seat belt.
7. User or attendant presses the button on the control unit to activate the hoist to pivot and lower into the pool.
8. User removes seat belt and swims off the hoist chair.

Manufacturer/Country

United States of America

Models / Specifications

Model PAL Spa: Designed for above ground pools and for above ground spas up to 52” above the deck

Model Pal Hi/Lo: A variation of the PAL designed for in facilities that have both in-ground pools and above ground spas

Model PAL 1000: Standard portable aquatic lift for facilities wishing to service more than one pool

• Load Capacity (supplier stated) 136 kg
• Length of Base 1380 mm
• Height Overall 3270 mm
• Height of Base 930 mm
