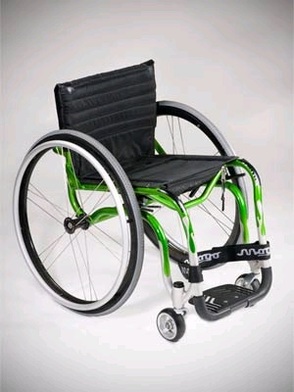

Mogo Shadow Wheelchair (PR16774)

https://ilcaustralia.org.au/products/16774

A manual wheelchair with a rigid heat treated aluminium frame. It is self propelled using a rear wheel drive action and is suitable for children and adults. The wheelchair is available in customised seat widths and depths and the axle position can be fixed or adjustable. The backrest can be fixed or folding. A range of options are available. It can be customised.

General Details

Extra product information

FRAME
The basic box shape frame is made from 6061-T6 heat treated aluminium. A large range of colour options are available. The wheelchair can have a fixed or adjustable axle position and centre of gravity.

SEAT
Seat height is only restricted by the size of the rear wheel and can be customised as needed. The seat width can be customised to any size with a tapered or straight seat assembly. The seat depth is also fully customisable.

UPHOLSTERY
The backrest is made from 420 denier sail cloth with the choice of padded depth adjustable or fixed upholstery with removable padded overlay both come with a vanity flap extension. The seat is made from 420D parapack material with hook and loop tape to attach a cushion.

LEGREST
Can be fully customised in length, available in tapered, curved or v tapered.

FOOTPLATES
The wheelchair has a one piece footplate.

WHEELS
Rear wheels range from 20" - 27" with double walled aluminum rims, stainless steel spokes, hard anodised hand rings and a quick release push button axle.

CAMBER
Available in 2,4,6, and 8 degrees.

OPTIONS
The wheelchair can be fully customised to meet the users needs and requirements:
Forks- upgrades include Frog leg suspension or Frog Leg unitunes.
Anti-tippers - upgrades include painted gloss black, and pin release.
Trays - custom sizes and designs, made from perspex.
Handles - T6 aluminum round tube, powder coated black gloss, fixed in place and removable height adjustable. Available in umbrella, single piece pram, one piece T-Bar and two piece umbrella styles.
Carry Nets - under frame carry all nets, edged with seat belt webbing for extra strength.
Frame Protectors - wrap around tube protection, hook and loop tape closing in black neoprene or black padded parapack cloth.
Wheel Bags - custom made padded bags in all sizes and widths.
Skirt Guards
Spoke Protectors - available in clear perspex only.
Brakes - available in toggle, scissor and handle extension styles.
Armrests - fixed or removable adjustable or fixed height armrest are available with desk pad handrests.
Colours - a wide range of colours are available in candy, matt, textured or standard colours. Design prints including flames, tribal tattoo art, gold and chrome or black nicol coating are also available.

Manufacturer/Country

Mogo / New South Wales

Websites

Mogo Shadow Wheelchair - http://www.mogowheelchairs.com.au/Chairs/Shadow.php

Features

Legrests

• Wheelchair legrest options:
  • length adjustable
  • tapered

Footplates

• Wheelchair footplate options:
  • angle adjustable
  • height adjustable
• Wheelchair footplates:
  • one piece

Wheels

• Wheelchair tyre options:
  • fully customisable (a large range of wheels are available including high performance)
  • pneumatic
  • solid
• Wheelchair tyres:
  • quick release axles
• Wheelchair castors:
  • solid

Brakes

• Manual Wheelchair brake options:
  • an extended lever
  • pulling towards occupant to lock
  • pushing away from occupant to lock
  • scissor type

Transport and Dismantling

• Wheelchair transport:
  • dismantles for transport

Accessories

• Wheelchair accessories:
  • anti-tips
  • spoke guards
  • tray table
  • under seat bag

Frame

• Manual Wheelchair frame:
  • aluminium
  • lightweight
  • rigid
  • self propelling

Seat

• Wheelchair seat:
  • slung style
  • upholstered

Backrest

• Wheelchair backrest options:
  • folding backrest
  • padded
  • slung style
• Wheelchair backrest:
  • upholstered

Headrest

Push handles

• Manual Wheelchair push handle options:
  • no push handles

Armrests

• Wheelchair armrest options:
  • desk length
  • fixed height
  • padded
  • removable

Models / Specifications

Model Mojo Shadow Wheelchair: One model only. Dimensions can be fully customised.

• Diameter of Rear Wheel 20 inch - 27 inch
• Diameter of Castor 3 inch - 8.25 inch
• Camber of Wheels 2.0, 4.0, 6.0, or 8.0 degrees
• Load Capacity (supplier stated) 110 kg
