ThyssenKrupp Levant Stairlifts for Straight Staircases (PR17751)

https://ilcaustralia.org.au/products/17751

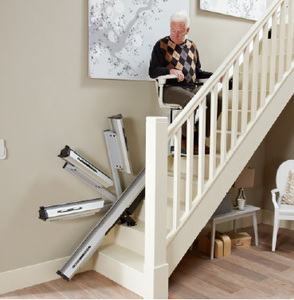

A single-rail, powered stairlift that transports a seated person up and down a straight stairway. Features include a hinged rail that removes the rail overhang at the bottom of the stairs, as well as manual swivel seat with seat height adjustment, height adjustable footrest, an on/off switch and joystick operation. Two models designed for indoor use. Outdoor stairlift option also available.

General Details

Additional Specifications

Rated load
140kg

Travel height
5m STD (Additional track can be added)

Capacity
1 Person

Landings
2

Drive system
Rack/Pinion

Door clearance
600mm or 0mm with an Auto Hinge Rail

Manufacturer/Country

ThyssenKrupp Access / Netherlands.

Websites

ThyssenKrupp Access - Outdoor Stairlift - https://directlifts.com.au/directlifts-stair-lifts-products/levant-family-stairlifts/#1492475987010-294d999a-ffc7

Stairlifts Range - https://directlifts.com.au/directlifts-stair-lifts-products/

ThyssenKrupp Access - Levant Comfort - https://directlifts.com.au/directlifts-stair-lifts-products/levant-family-stairlifts/#1492475965275-cf910554-92f6

ThyssenKrupp Access - Levant Classic - https://directlifts.com.au/directlifts-stair-lifts-products/levant-family-stairlifts/

Features

Safety

• Stairlift safety features:
  • battery back up
  • lockable on/off switch
  • sensors that stop the stairlift if it hits an object

Stairlift Parking

• Stairlift parking:
  • seat, armrests and footplate can be folded back manually

Stairlift Controls

• Stairlift controls:
  • remote hand held control
  • toggle switch at the end of the armrest

Armrests

• Stairlift armrests:
  • lift up

Seat

• Stairlift seat:
  • padded
  • swivel

Stairlift Track

• Stairlift tracking:
  • mounted to the stairs
  • straight

Type of Stairlift

• Stairlift use:
  • external
  • internal

Models / Specifications

Model Levant Outdoor : designed for outdoor use

• Width Overall 655 mm
• Width between Armrests 485 mm
• Height Overall 963 mm
• Depth from wall (when folded) 372 mm
• Depth Overall 636 mm (seat unfolded )
• Load Capacity (supplier stated) 125 kg
• Width of Seat 422 mm

Model Levant Comfort: High back, call and send stations, hinge rail.

• Depth from wall (when folded) 380 mm
• Depth Overall 632 mm
• Width Overall 584 mm
• Depth of Seat 408 mm
• Load Capacity (supplier stated) 125 kg
• Width between Armrests 467 mm
• Height Overall 917 mm
• Width of Seat 320 mm

Model Levant classic: Standard model

• Depth from wall (when folded) 368 mm
• Width between Armrests 485 mm
• Depth of Seat 410 mm
• Width of Seat 422 mm
• Width Overall 655 mm
• Height Overall 963 mm
• Depth Overall 632 mm ( swivelled 680mm )
• Load Capacity (supplier stated) 127 kg - 137 kg (depends on angle of stairwell )

Suppliers (1)

• Direct Lifts Australia - https://ilcaustralia.org.au/suppliers/14734

  See supplier website or your telephone directory for location of your nearest store.

  • Direct Lifts Australia https://directlifts.com.au/
  • Direct Lifts www.directlifts.com.au

Agents (0)

Importers (0)

Manufacturers (0)

Images
