Progeo Tekna Tilt Manual Wheelchair (PR18357)
Progeo Tekna Tilt
https://ilcaustralia.org.au/products/18357
A manual folding tilt in space wheelchair that is available in adult and junior sizes. It features adjustable backrest position, backrest angle, armrest position, front of frame angle, seat height and rear wheel position. Available with single or swing away footplates. Made from aluminium alloy.
General Details
- Crash Test Information for Wheeled mobility devices
This wheeled mobility device is not crash tested, so should not be used as a seat in a vehicle. The user must transfer to a standard car seat for travel.
- Manufacturer/Country
- Progeo / Italy
- Standards Compliance
- Standards Number AS/NZS 3695.1:2011
- Websites
- Progeo Tekna Tilt Adult & Junior Manual Wheelchairs - http://www.rehateamprogeo.com/?PAG=3&SEZ=56&MOD=42&LANG=EN
Features
Accessories
-
Wheelchair accessories:
- anti-tips
- crutch holder
- positioning belts
- spoke guards
- tip-assist
- transit wheels
- tray table
Transport and Dismantling
Brakes
-
Manual Wheelchair brake options:
- an extended lever
- attendant controlled brake on push handle
- lever type
- pulling towards occupant to lock
-
Manual Wheelchair brakes:
- push to lock
Footplates
-
Wheelchair footplates:
- angle adjustable
- lift up
- swing away
- two piece
-
Wheelchair footplate options:
- depth adjustable
- one piece
- platform
Legrests
-
Wheelchair legrest options:
- angle adjustable
- elevating (manual)
- leg strap
-
Wheelchair legrests:
- removable
- swing away
Armrests
-
Wheelchair armrests:
- desk length
- height adjustable
- removable
-
Wheelchair armrest options:
- padded
Push handles
-
Manual Wheelchair push handles:
- fixed height
-
Manual Wheelchair push handle options:
- height adjustable
- stroller style handle
Headrest
-
Wheelchair headrest options:
- fully customisable (the wheelchair is compatible with a large range of headrests)
- removable
Frame
-
Manual Wheelchair frame:
- aluminium alloy
- approved for power assist
- folding
- tilt in space
-
Manual Wheelchair frame options:
- self propelling
- transit
Models / Specifications
- Model Progeo Tekna Tilt: Adult folding tilt in space and recline manual wheelchair
-
- Load Capacity (supplier stated) 125 kg
- Width of Seat 330.0, 360.0, 390.0, 420.0, 450.0, or 480.0 mm
- Height of Backrest 350 mm - 725 mm (Adjustable, customisable)
- Depth of Seat 375.0, 400.0, 425.0, 450.0, 475.0, or 500.0 mm (Adjustable)
- Height of Seat Rear 390 mm - 500 mm (Adjustable)
- Height of Seat Front to Footplate 270 mm - 500 mm (Adjustable)
- Angle of Recline for Backrest 78 degrees - 94 degrees
- Angle of Legrest Hanger 70.0, 75.0, 80.0, 85.0, 90.0, or 95.0 degrees (95 deg is standard. Angle adjustable front hangers are options. )
- Range of Tilt In Space 0 degrees - 40 degrees (Adjustable)
- Height of Seat from Ground 400 mm - 510 mm
- Width Overall 530 mm - 680 mm
- Depth Overall 950 mm (Standard. 750mm without footplates.)
- Weight Overall 17.5 kg (Standard)
- Weight of Heaviest Part 12 kg (Frame only)
- Width Folded 320 mm (with 12" wheels)
- Climbing Grade (angle) 3 degrees (6%)
- Camber of Wheels 0 degrees
- Diameter of Rear Wheel 12.0, 16.0, 22.0, or 24.0 inch (305mm; 406mm; 559mm; 610mm )
- Diameter of Castor 6.0 and 7.0 inch (152mm; 178mm)
- Model Progeo Tekna Tilt Junior: Childrens folding tilt in space and recline manual wheelchair.
-
- Width of Seat 270.0, 300.0, 330.0, 360.0, or 390.0 mm
- Height of Backrest 350 mm - 725 mm (Adjustable)
- Depth of Seat 300.0, 325.0, 350.0, 375.0, or 400.0 mm (Adjustable)
- Height of Seat Rear 390 mm - 500 mm (Adjustable)
- Height of Seat Front to Footplate 200 mm - 500 mm (Adjustable)
- Angle of Recline for Backrest 78 degrees - 94 degrees (Adjustable)
- Load Capacity (supplier stated) 125 kg
- Range of Tilt In Space 0 degrees - 40 degrees
- Height of Seat from Ground 400 mm - 510 mm
- Width Overall 470 mm - 590 mm
- Depth Overall 900 mm (Standard)
- Weight Overall 16.5 kg (Standard)
- Weight of Heaviest Part 11 kg (Frame only)
- Width Folded 320 mm (with 12" wheels)
- Angle of Legrest Hanger 75.0, 80.0, 85.0, 90.0, or 95.0 degrees
- Climbing Grade (angle) 3 degrees (6%)
- Diameter of Rear Wheel 12.0, 16.0, 22.0, or 24.0 inch (305mm; 406mm; 559mm; 610mm )
- Diameter of Castor 6.0 and 7.0 inch (152mm; 178mm )
- Camber of Wheels 0 degrees
Suppliers (0)
Agents (0)
Importers (0)
Manufacturers (0)
Images
Progeo Tekna Tilt

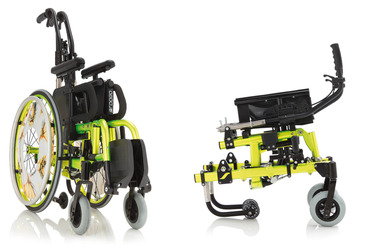

Progeo Tekna Tilt Junior
Progeo Tekna Tilt Folded
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
