Solax Mobie Portable Mobility Scooter (PR18362)

https://ilcaustralia.org.au/products/18362

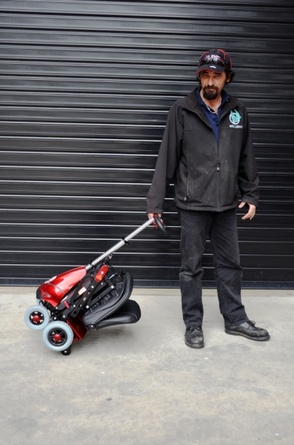

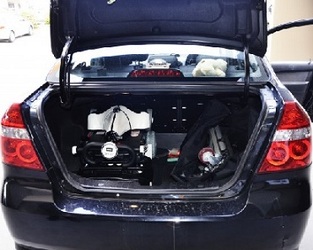

A four wheeled, compact scooter that is manually able to fold for transport. The Mobie folds into a suitcase that features small wheels and a handle so it is able to be pulled around. The mobie portable scooter lifter (PR18391) can also be used to lift folded scooter into the boot of a vehicle.

General Details

Powered Scooters - safety advice for use

Test you can drive the power scooter safely and with ease before buying it. Check local power scooter road rules and follow them. Only drive in areas scooter is designed for.
This item should be trialled in the user's own environment to ensure maximum safety and independence. Environmental considerations include e.g.: kerbs, footpaths, tram and railway crossings, street crossings, etc.

Method of Use

Unfolding the Mobie
1. Pull up the red release lever located on the left side of the scooter. This will take the Mobie out of "Lock" mode.
2. Carefully grab the control panel or tiller handle and push the Mobie forward while holding the seat.
3. Grab the rear of the seat and pull it up while pushing continuing to push the tiller forward.
4.As the scooter unfolds, either push the floorboard down with your hand (avoid pinch point) or place your foot on the floorboard and press down until it
locks in place. Do not place your foot in-between the "Pinch" point of your foot may get injured.
5.If you have the optional armrests you will need to just flip them up. If not, proceed to step 6.
6. Pull the back seat up.

Folding the Mobie
1. Adjust the tiller back to its default position.
2. Collapse the seat. Push down the back seat rest until it is rested on the seat bottom.
3.If you have armrests, pull up on the armrest and then fold them inward.
4. Push in the "Seat Lock" handle that is located under seat while holding the rear of the seat. This allows the seat to start the accordion like fold.
5. While pressing the seat release lock, push the seat back.
6. Grab the strap that is located in the middle of the floorboard and pull up
while pushing the seat down.
7. Push the front and rear chassis together until they lock in place

Manufacturer/Country

Solax Technology Limited / China

Websites

E-Ride Solutions: Mobie Travel Scooter - https://www.eridesolutions.com.au/collections/solax/products/solax-mobie-mobility-e-scooter

Video - Youtube: Mobie Travel Scooter - https://www.youtube.com/watch?v=lWcA_-jig2c&list=UU6c2zXrTPiYotRJUv20zYrw&index=27

Mobie Travel Scooter - https://www.motobility.com.au/products/electric-mobility-scooters/mobie-plus

Features

Frame

• Powered Scooter cowlings:
  • ABS plastic
• Powered Scooter frame:
  • aluminium

Seat

• Powered Scooter Seat:
  • fixed height

Backrest

• Powered Scooter backrest:
  • contoured
  • upholstered

Armrests

• Powered Scooter armrests:
  • desk length
  • lift up
  • width adjustable

Wheels

• Powered Scooter tyres:
  • solid

Controls

• Powered Scooter controls:
  • angle adjustable steering tiller
  • battery level indicator
  • finger or thumb lever controls
  • key on/off

Brakes

• Powered Scooter brakes:
  • electromagnetic

Transport and Dismantling

• Powered Scooter transport:
  • can be folded for transport

Suspension

Optional Accessories

• Powered Scooter accessories:
  • basket
  • cup holder

Models / Specifications

Model Solax Mobie S2014 Portable Mobility Scooter: One model only

• Weight of Heaviest Part 23 kg (scooter without lithium battery )
• Width of Seat 430 mm
• Clearance Under Base to ground 40 mm
• Voltage of Battery 24 Unknown
• Turning Circle 820 mm
• Range (distance) 15 km
• Speed 6 kph
• Width Folded 450 mm
• Height Folded 600 mm
• Length Folded 380 mm
• Load Capacity (supplier stated) 120 kg
• Depth of Seat 380 mm
• Height of Backrest 350 mm
• Width Overall 440 mm
• Length Overall 980 mm
• Height Overall 980 mm
• Weight Overall 24.5 kg
• Height of Seat Front 450 mm (from deck)
• Climbing Grade (angle) 8 degrees (Approximate)
• Ampage of Battery 10 A
• Power 120 W
