General Details

Extra product information

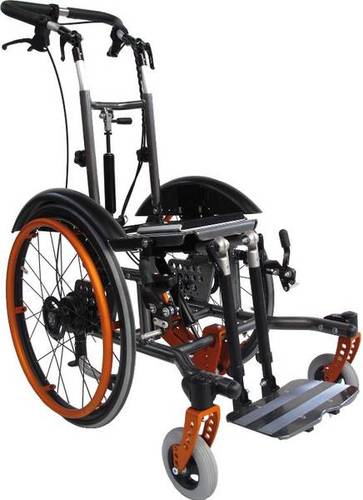

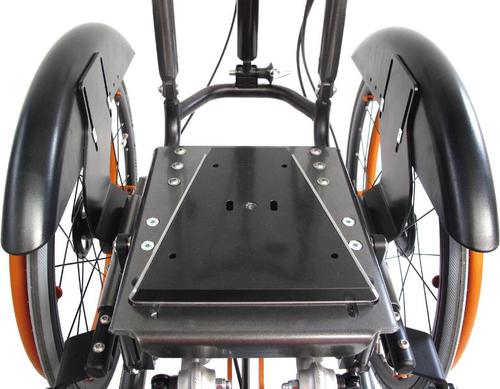

The LOOP has a growing seat shell-undercarriage
-frame width 40mm,
-back part extendable by 60mm,
-seat wedge adjustable by 50mm in depth.

Standard Version:
Rigid aluminum frame with 10cm abduction
+2/+4 seat width growth

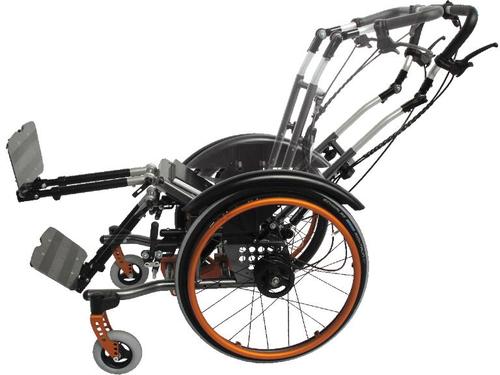

Back rest angle is adjustable and foldable to the front,
Back part is extendable by 60mm back, seat wedge adjustable in depth by 50mm.
Standard 300mm rear wheel with integrated handrims, drum brakes and quick release axle with pneumatic or flat free tyres.
Caster wheels with aluminum forks.

FRAME:
Aluminum frame, OPTIONS: can be fitted with anti-tipper swing away installation can be fitted left or right or on both sides.
Outdoor Front end - adjustable in width and length can assist with rough or soft surfaces. A splash guard can be attached to this additional wheel.
Wheelbase extension - can be extended by 950mm.

BACKREST:
Backrest angle can be adjustable mechanically thorugh the frame from 90'-120' and folded fowards. OPTION: Stepless adjustable angle through gas pressure spring can be achieved by activating the lever for the gas spring. Activation of the gas pressure spring by handle and bowden cable mounted at the push handle.

ARM RESTS:
Mounted at the seat shell - adjustable in height through the raster or step less adjustable in height and angle.
Wheel cover - black synthetic material (not for smallest wheel diameter).
Push Bow - mounting standard or mounting high.

WHEELS:
Standard wheels OPTION: Lightweight drum brake wheel included handrim in black.

HANDRIMS
Stainless steel handrims that can be mounted, tight, wide, high or standard. OPTION: position of handrims and additional knobs if required.

TYRES:
Standard - Schwalbe or standard tyres OPTION: solid tyres, Schwalbe pneumatic colours, Schwalbe marathon plus.

LEGRESTS
Standard - locking at 90', with heel edge.OPTION: Heel cups - specific size for frame ordered, Calf support, angle adjustable and multidirectional.

FOOTPLATES
All footplates swivel outwards and removable, footplate depth of 160mm.
Can be fitted undivided footplate with foldable sidewards and removable leg support and adjustable width. Divided footplates or swiveling divided footplates (adjustable 95'-175' in pivot point).

BRAKES:
Standard - drum brakes with lever for attendant. OPTIONS: Knee lever brake, Recoil blocking - automatically averts the risk of rolling backwards down slopes without affecting forward movements.

BRAKE LEVER EXTENSIONS:
Models: Cover, ball knob or golf ball knob, 60mm straight in length or 120mm cranked in length.

SPOKE COVER:
Standard Extra - transparent, but can also be blue, red or yellow.

CASTER WHEELS:
Standard polyurethane grey tyre OPTION: Solid rubber grey, Polyurethane, transparent with LED's, Solid rubber, black with aluminum rim. These are in specific size dimensions, depending on the option selected.

CASTER FORKS:
Aluminium fork, black anodized, OPTIONS:can have synthetic caster forks, powder coated to match the frame colour, Aluminum caster fork with quick release axle.

Crash Test Information for Wheeled mobility devices

This wheeled mobility device meets the design requirements and has been successfully crash tested in accordance with ANZS/ISO 7176-19:2008 MOD. This standard relates to the design requirements specified for a wheeled mobility device to be used to transport an individual in a motor vehicle.

Manufacturer/Country

SORG - Germany

Warranty

One year warranty on all compenents.

Standards Compliance

Standards Number

ISO 9001.2008

Websites

• Motum weblink - http://www.motum.com.au/loop

Maintenance

Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.

Models / Specifications

Features

Contact listed suppliers to confirm features, options and models available.

Frame

• Manual Wheelchair frame:
  • aluminium
  • aluminium alloy
  • folding
  • rigid
  • tilt in space

Seat

• Wheelchair seat options:
  • depth adjustable
  • flat seat pan (for use with a large range of cushions)

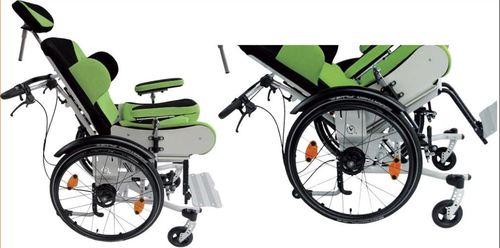

  • no seat (a large range of seating systems can be fitted)
  • width adjustable

Backrest

• Wheelchair backrest:
  • angle adjustable (manually)
  • folds down onto the seat for transport
  • height adjustable
  • no backrest (a large range of backrests can be fitted)
  • recline (manually)

Push handles

• Manual Wheelchair push handle options:
  • attendant brakes
  • single push bar
  • stroller style handle

Armrests

• Wheelchair armrest options:
  • angle adjustable
  • desk length
  • height adjustable
  • padded

Legrests

• Wheelchair legrest options:
  • angle adjustable
  • folding platform
  • length adjustable
  • removable
  • swing away

Footplates

• Wheelchair footplates:
  • angle adjustable
  • depth adjustable
  • heel loops
  • height adjustable
  • swing away

Wheels

• Wheelchair tyre options:
  • pneumatic
  • quick release axles
  • solid
• Wheelchair castors:
  • solid

Brakes

• Manual Wheelchair brake options:
  • an extended lever
  • attendant controlled brake on push handle
  • lever type
  • pushing the brake lever onto the wheel

Transport and Dismantling

Accessories

• Wheelchair accessories:
  • anti-tips
  • lights kit

Transport and Dismantling

• Wheelchair transport:
  • secure by transport approved tie down points for user sitting in the wheelchair
