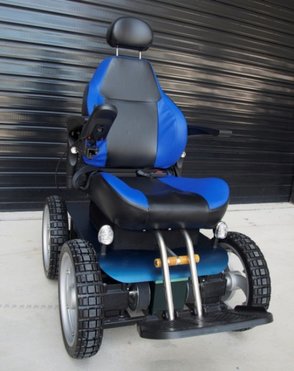

The Observer Bush 4x4 powered wheelchair is designed to have the power and ability to travel over a range of rougher terrains. The Observer Bush 4x4 can manage slopes of up to 15 degrees and comes in 3 seat widths.

General Details

Caution: Powered Wheelchairs & Scooters

This item should be trialled in the user's home environment to ensure maximum safety and independence. Environmental considerations include kerbs, footpaths, road, railway crossing, etc.
Users should take care when riding a scooter or powered wheelchair and observe the following safety guidelines:
• Users who intend to use scooters or powered wheelchairs must ensure they have the necessary physical and cognitive skills to operate and manoeuvre them safely
• Stay within the legal speed limit of 10km/h
• Be aware that taking medication or driving under the influence of alcohol may affect the user's judgement
• Always make sure that you are clearly visible, particularly at night or on dull days-use the lights and reflectors and install a reflective flag high enough to be seen by motorists
• Wear a bicycle helmet whenever possible
• Slow down when you are near other people, especially pedestrians and cyclists
• Avoid stopping or driving on inclines greater than your scooter or powered wheelchair is designed for
• Use footpaths if possible. If there are no foot paths, plan to user quieter roads
• Plan your trip and avoid uneven surfaces, dips and potholes
• Ensure if you are carrying parcels that the load will not over-balance your scooter or powered wheelchair and the parcels do not interfere with your controls or vision.

Manufacturer/Country

Jiangnan Machinery Co Ltd/China

Warranty

See supplier for details

Websites

Maintenance

Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.

Models / Specifications

Model Observer Bush 4x4 Powered Wheelchair: A slimmer version of the Observer Beach 4x4 powered wheelchair

  • Width of Seat 406.0, 457.0, or 508.0 mm
  • Time to Recharge 8 h - 10 h
  • Duration of battery life 3 h (Maximum operating time, depending on terrain)
  • Length Overall 1120 mm
  • Width Overall 730 mm
  • Height Overall 1160 mm
  • Height Folded 900 mm (Seat folded for vehicle transport)
  • Height of Seat from Ground 530 mm
  • Number of batteries for operation 4 units (12V/27Ah)
  • Diameter of Rear Wheel 420 mm
  • Diameter of Front Wheel 420 mm
  • Width of Wheel 90 mm
  • Clearance Under Base to ground 105 mm
  • Load Capacity (supplier stated) 150 kg
  • Weight Overall 170 kg (Including batteries)
  • Climbing Grade (angle) 15 degrees
  • Turning Circle 980 mm
  • Range (distance) 20 km - 25 km (On even terrain)
  • Speed 0 kph - 7 kph

Features

Contact listed suppliers to confirm features, options and models available.

Brakes

  • Powered Wheelchair brakes:
    • electromagnetic
    • engage automatically when joystick/controller is released

Transport and Dismantling

  • Wheelchair transport:
    • backrest can be folded down for transport
    • secure by transport tie downs for transport of wheelchair only

Controls

  • Powered Wheelchair control:
    • joy stick
    • LCD display
    • programmable

Wheels

  • Wheelchair tyres:
    • solid

Footplates

  • Wheelchair footplates:
    • one piece
    • platform

Legrests

  • Wheelchair legrests:
    • fixed height

Armrests

  • Wheelchair armrests:
    • height adjustable
    • lift up

Headrest

  • Wheelchair headrest:
    • contoured
    • padded

Backrest

  • Wheelchair backrest:
    • captains style
    • contoured
    • folds down onto the seat for transport
    • padded

Seat

  • Wheelchair seat:
    • captains style
    • contoured
    • padded

Frame

  • Powered Wheelchair frame:
    • aluminium
    • heavy duty
