Terry Melody 2 Low Rise Lift (PR19220)

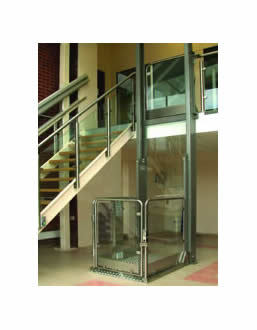

Terry Melody 2 (Internal)
https://ilcaustralia.org.au/products/19220
The Melody 2 Wheelchair Lift can be fitted either outdoors or indoors to enable access in and out of the home or public building or to a mezzanine level. It incorporates an integral ramp to eliminate the need for a pit, keeping building work to a minimum. Comes in a wider platform if required. Full battery back up and emergency lowering facility. Ramp travels up to 3m and it has a safe working load of 440kg.
General Details
- Extra product information
-Emergency lowering facility.
-Easy to operate.
-Ramp incorporated into the design.This means a pit is not needed and therefore building work is minimised.
-Lift carriage finished in attractive and durable stainless steel.
-A wider platform available if required (1100 x 1400 mm).
-Available in different colours.
- Additional Specifications
Rated speed:0.08 metres per second.
Power supply electrical requirements:
220 / 240V~50 / 60 Hz-13A single phase (max). Dedicated RCD protected supply.Low voltage control system:12VDC.
Operating temperature range:-10°C to +40°C.
Safety:Full platform safe surface which stops the lift should it touch any obstacle in the down direction. Fully interlocked upper and lower gates.
Drive: Direct acting hydraulic.
- Manufacturer/Country
- Terry Group Ltd / UK
- Websites
- Manufacturer Website - http://terrylifts.co.uk/wp-content/uploads/2013/07/Melody-2-Domestic-Direct-Brochure-0612.pdf
Models / Specifications
- Model Melody 2: One model with option of larger platform
-
- Range of Lift 3000 mm
- Width Overall 920 mm
- Length Overall 1526 mm (When doors are closed)
- Width Internal 900 mm
- Length Internal 1400 mm
- Load Capacity (supplier stated) 440 kg
Suppliers (0)
Agents (0)
Importers (0)
Manufacturers (0)
Images
Terry melody 2 (External)
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
Standards
Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing, and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For more information about standards see http://www.ilcaustralia.org.au/Using_Assistive_Technology/standards_regulation
