Aquatic Access Range of Automatic Pool Hoists (PR19497)

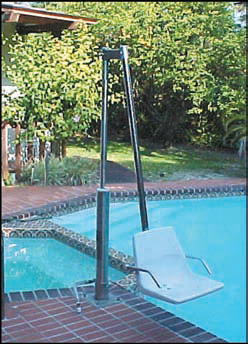

23086 pool lift 2

IGAT-180 Pool Hoist

https://ilcaustralia.org.au/products/19497

A range of in-ground pool hoists that can be installed in private or public areas. Designed for use as a pool or spa hoists there are a range of accessories available. Controls can be accessed from pool side or in water. All can be removed for storage from in deck base.

General Details

Caution: Lifting and Transferring people - Hoists

It is recommended that prior to using this product. training in manual handling and the correct use of assistive devices should be undertaken.

Extra product information

Seating Options
Extra Wide Two Piece Seat
Spine Board Assembly
Reclining Stretcher Assembly
Enclosed Platform for Animals
Available in blue or white seat

Accessories: Flip up armrests, seat belt, flip up footrest, vinyl liner wall pad.

Manufacturer/Country
USA

Features

Portability & Storage

  • Hoist storage / portability:
    • dismantles

Power Source

  • Hoist power source :
    • mains water pressure

Controls

  • Hoist controls:
    • electric hand held control

Seat

  • Pool / Spa / Bath Hoist seat:
    • contoured
    • drainage holes
    • padded
    • plastic

Type of hoist

  • Hoist type:
    • pool hoist

Models / Specifications

Model IGAT-180: In-Ground Automatic 180 Seat Rotation. Compact, lightweight & removable.
  • Load Capacity (supplier stated) 181 kg
  • Weight of Heaviest Part 37 kg (Weight with seat)
Model IGAT-180/135 Above Deck: In-Ground Automatic 135degree Seat Rotation. For pools/spas with benches. Installed above deck. Design allows foot rest to miss built in benches an descend deeper past bench.
  • Load Capacity (supplier stated) 158 kg
Model IGAT-90: In-Ground Automatic 90 Seat Rotation. Front of seat is parallel to pool wall, seat rotate backward into the water and forward when exiting. Suited to those who can do standing transfers.
  • Load Capacity (supplier stated) 181 kg
Model IGAT-180/135: In-Ground Automatic 135degree Seat Rotation. For pools/spas with benches. Design allows foot rest to miss built in benches an descend deeper past bench.
  • Load Capacity (supplier stated) 181 kg
Model IGAT-180 Above Deck: In-Ground Automatic 180 Seat Rotation. Installed above deck and designed so that the entire lift is out of water until seat enters.
  • Load Capacity (supplier stated) 158 kg

Suppliers (0)

    Agents (0)

      Importers (0)

        Manufacturers (0)

          Images

          23087 pool hoist 3
          Aquatic Access Above Deck Pool Hoist
          23088 pool accessories

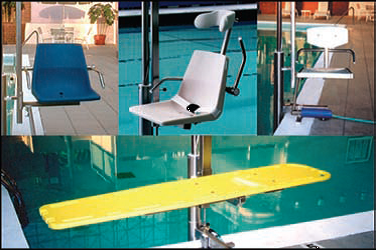

          Accessories

          Maintenance

          Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
