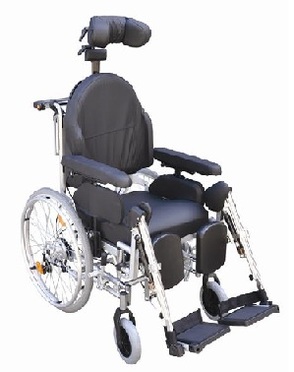

R2 Tilt In Space Wheelchair (PR19501)

https://ilcaustralia.org.au/products/19501

A rigid framed manual wheelchair with a recline and tilt in space function. It is self propelled using a rear wheel drive action and is suitable for adults. The wheelchair has width and depth adjustable seat sizing, a contoured backrest, adjustable head support, adjustable height removable armrests, and extending, elevating legrests.

General Details

Extra product information

Frame
Rigid alloy frame which features height adjustable push handles and an adjustable wheel base. Frame is a chrome colour.

Tilt In Space
The wheelchair features tilt in space from -2 to 20 degrees and is operated via a lever located on the right push handle.

Headrest
The headrest is forward, backward, height and laterally adjustable.

Seat
The standard chair features a removable contoured padded seat which is attached to the frame via hook and loop tape. Four way stretch fabric covers the seating. A lower seat height can be achieved by repositioning the wheels.

Backrest
The backrest may be manually reclined via a hand operated lever located on the left push handle. Backrest can be recline 0-40 degrees. The backrest is height adjustable.

Armrests
Padded full length armrest are removable and are height adjustable. The arm pad can be slid forward and backward.

Footrests
Footrests are two piece, removable, swing-away, angle and height adjustable. They feature plastic footplates with adjustable heel loops. Elevating legrests, knee pads and padded swing away calf supports are standard.

Rear Wheels
The chair features 610mm diameter, pneumatic quick release tyres. Optional push transit model features 410mm diameter, pneumatic tyres. The anti-tip wheels are height adjustable.

Front Casters
200mm diameter, solid tyres.

Brakes
Push on, lever style and attendant brakes.

Transporting
The wheelchair cannot be folded for transport but can be reduced to a low compact shape by removing legrests, armrests and headrest and folding the backrest down onto the seat.

Customising
The chair can be customised in relation to seat depth, width and height.

FEATURES:
Gas assisted tilt-in-space and recline options
Removable height adjustable armrests
Side panels and adjustable arm pad length
Removable swing away elevating leg rests and calf pads
Height adjustable padded contoured backrest
Depth adjustable padded seat with built-in pommel
Removable padded headrest with adjustable side supports
Alloy frame with water resistant upholstery
Adjustable Push Handle.

Additional Specifications

Optional:
Removable central support pommel and removable lateral supports are optional.

Manufacturer/Country

China

Models / Specifications

Model R2: R2 Tilt in Space Wheelchair

• Width of Seat 410 mm - 510 mm
• Depth of Seat 420 mm - 480 mm
• Height of Seat 500 mm
• Height of Backrest 650 mm
• Height Overall 650 mm - 1000 mm
• Height of Armrest 200 mm - 250 mm (Height from seat)
• Angle of Tilt -2 degrees - 20 degrees
• Width Overall 740 mm
• Length Overall 1040 mm
• Load Capacity (supplier stated) 140 kg
• Weight 38 kg
• Diameter of Rear Wheel 24 inch
• Diameter of Castor 7 inch
• Angle of Recline for Backrest 0 degrees - 40 degrees
