RAZ Mobile Shower Commode (Attendant, Self Propelled and Bariatric) (PR19504)
Raz AP
https://ilcaustralia.org.au/products/19504
A stainless steel, mobile, attendant or self propelled over toilet or shower commode. The commode offers the Ischial & Pelvic Alignment System (IPAS), which allows the commode seat aperture to be centered around the ischial tuberosities for clients with a posterior or anterior rotated pelvis. The seat height is adjustable. The fabric backrest is tension adjustable. The footrests and armrests flip up, and the seat is a contoured, removable foam cushion. Heavy duty models, the AP600 and SP600, are also available, with load capacities up to 270kg.
General Details
- Extra product information
There is a Long Frame option for Raz-AP and Raz-SP, which adds 3" to the overall depth. This is required for custom seat depths of 20" or more. The Long Frame option puts less weight on the front castors, which makes the chair easier to wheel/manoeuver.
- Manufacturer/Country
- Raz / Canada
- Websites
- - http://razdesigninc.com/index.php/shower-commode-chair/raz-ap600-attendant-propelled/
Models / Specifications

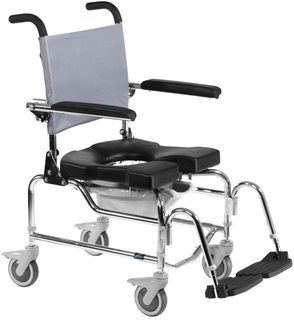

- Model Raz AP: Attendant propelled
-
- Width Overall 23.0 and 25.5 inch (23 inch with standard arm pads, 25.5 inch with Z715 arm pads)
- Load Capacity (supplier stated) 136 kg
- Clearance Under Seat 14 inch - 17 inch (10-13 inch with pan, 15-18 inch without pan bracket)
- Width of Seat 18 inch
- Depth of Seat 16.0 and 19.0 inch
- Depth Overall 28.6 inch (40.2 inch (with footrest))
- Model Raz AP600: Attendant propelled bariatric
-
- Width Overall 26.0 and 29.5 inch (26 inch with standard armpads, 29.5 inch with Z715 armpads)
- Depth Overall 29.5 inch (39 - 40.5 inch (with footrest))
- Load Capacity (supplier stated) 270 kg
- Clearance Under Seat 14 inch - 18 inch (14-18 inch under pan bracket with 5" casters, 15-19 inch under pan bracket for 6" casters.)
- Width of Seat 23 inch
- Depth of Seat 18 inch - 20 inch
- Model Raz SP: Self propelled
-
- Width Overall 26 inch
- Depth of Seat 16.0 and 19.0 inch
- Width of Seat 18 inch
- Clearance Under Seat 10 inch - 18 inch
- Load Capacity (supplier stated) 136 kg
- Model RAZ SP600: Self propelled bariatric
-
- Width Overall 30 inch
- Depth of Seat 18 inch - 20 inch
- Width of Seat 23 inch
- Clearance Under Seat 15 inch - 19.5 inch
- Load Capacity (supplier stated) 270 kg
Suppliers (0)
Agents (0)
Importers (0)
Manufacturers (0)
Images
Raz AP600

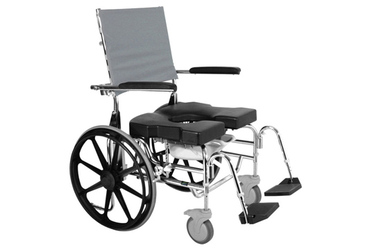

RAZ SP600
RAZ SP
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
