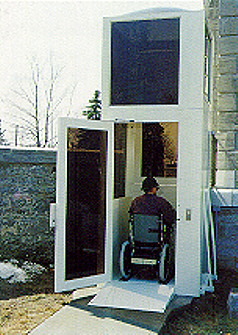

Range of Concord P.A.L Lifting Platforms

https://ilcaustralia.org.au/products/1954

A vertical wheelchair platform lift available in four models, with six lifting heights for indoor and outdoor applications. They are battery powered and have a cable hydraulic drive system. If these lifts are to be installed in a public building it must comply with the relevant Australian Standard.

General Details

Extra product information

The lifting platform has an aluminium car frame with a baked paint finish. It features skid resistant flooring and battery powered lowering and raising of the 1:2 cable hydraulic drive system.
A 90 degree exit and same side entry/exit are available. All models have a handrail, anti creep mechanism, and upper and lower limit switches.
A pit of 75mm(3") will need to be dug for installation.

CONTROLS are key controlled constant pressure on the platform with
optional call stations at the landings.

POWER SOURCE is battery powered with an automatic battery recharging system.

DRIVE SYSTEM is 1:2 cable hydraulic.

SAFETY FEATURES include emergency power lowering and raising, emergency manual lowering, emergency light and alarm and emergency stop.

Options

- Emergency stop
- Emergency alarm
- Final limit switch
- Intermediate stops (3 or 4 stops available)
- Call stations
- 1520mm(60") platform length
- Enter/Exit same side
- 90 degree exit
- Flip up ramp
- Stationary ramp
- Platform gate
- Upper and lower landing gates
- Time delay door locking
- Flip up seat
- Paint colours

Manufacturer/Country
Concord/USA
Websites
- http://www.orthopedicservice.com/Catalog/Online-Catalog-Product/1588/Concord-Pal-S

Models / Specifications

Model Lifting Platform: Available in standard, enclosed, semi-enclosed and exterior models
  • Width of Platform 890 mm
  • Load Capacity (supplier stated) 341 kg
  • Length Overall 1291 mm - 1523 mm
  • Range of Lift 1.22 m - 4.27 m
  • Length of Platform 1220 mm - 1372 mm

Suppliers (0)

    Agents (0)

      Importers (0)

        Manufacturers (0)

          Images

          4098 pr01954%20 %20concord%20pal%20lifting%20platform2
          Range of Concord P.A.L Lifting Platforms
          4099 pr01954%20 %20concord%20pal%20lifting%20platform4
          Range of Concord P.A.L Lifting Platforms
          4100 pr01954%20 %20concord%20pal%20lifting%20platform3
          Range of Concord P.A.L Lifting Platforms

          Maintenance

          Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
