Elex Wheelchair Lifts (PR01955)

4162 pr01955%20 %20elex%20wheelchair%20lifts

Elex Wheelchair Lifts

https://ilcaustralia.org.au/products/1955

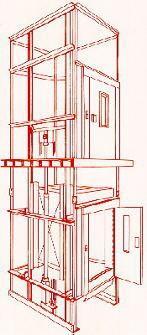

A vertical lift that transports a person, in a wheelchair or standing, between floors up to 12000mm (39') with unlimited stops. Indoor and outdoor applications. Suitable for residential and commercial use. Fully customised.

General Details

Extra product information

The lift has a steel, self supporting structure. A pit will need to be dug for installation of up to 250mm(9") deep.
The lift can accommodate four standing people or two standing and a person in a wheelchair.

CONTROLS are single touch push buttons with call stations at each level.

POWER SOURCE is mains power, either three phase or single phase, (with single phase the travel speed will be slower).

DRIVE SYSTEM is hydraulic.

SAFETY FEATURES include slow down limit switch, final limit switch at top and bottom, rupture valve on hydraulics, emergency car light, and it returns to ground level if power fails.

Options

Operating panel design
- Vandal Proof
- Touch Sensitive
- Braille
- Square or Round

A range of doors

A range of car designs and finishes

Manufacturer/Country
Italy
Websites
- http://www.masterlifts.com.au/html/elex-lift.html

Models / Specifications

Model Elex Wheelchair Lifts: May be customised
  • Distance of Travel 12000 mm

Suppliers (0)

    Agents (0)

      Importers (0)

        Manufacturers (0)

          Maintenance

          Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.

          Standards

          Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing, and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For more information about standards see http://www.ilcaustralia.org.au/Using_Assistive_Technology/standards_regulation
