R82 Kudu Wheelchair (PR19555)

23223 imagegen.ashx

https://ilcaustralia.org.au/products/19555

A rigid frame tilt in space, reclining paediatric wheelchair. Comes in 4 sizes. Backrest height and seat depth can be extended without having to change cushions. The Kudu is self-centring tilt-in-space wheelchair and is Crash tested.

General Details

Extra product information

Optional Extras/Accessories

Foot plate, centrally mounted
Parted foot rests
Push handles
Push brace
Vent tray
Transport fittings rear
Mud guards
Heel band for parted foot rests
Calf support
Rucksack
Swing away knee supports
Tray
Arm rests, incl. side plates
Swing-away side supports
Fixed side supports
Back extension cushion
Head support with cover

Manufacturer/Country
R82/Denmark
Websites
R82 - http://www.r82.com/products/seating/kudu/c-23/c-69/p-215/?sku=53031

Features

Accessories

  • Wheelchair accessories:
    • anti-tips
    • calf strap
    • oxygen bottle holder
    • positioning belts
    • spoke guards
    • tray table

Transport and Dismantling

  • Wheelchair transport:
    • secure by transport approved tie down points for user sitting in the wheelchair

Brakes

  • Manual Wheelchair brake options:
    • attendant controlled brake on push handle
    • pushing the brake lever onto the wheel

Wheels

  • Wheelchair tyre options:
    • pneumatic
    • quick release axles
    • solid
  • Wheelchair castor options:
    • pneumatic
    • solid

Footplates

  • Wheelchair footplate options:
    • angle adjustable
    • heel loops
    • one piece
    • swing away
    • two piece

Legrests

  • Wheelchair legrest options:
    • length adjustable
    • removable
    • swing away

Armrests

  • Wheelchair armrests:
    • height adjustable

Push handles

  • Manual Wheelchair push handle options:
    • height adjustable
    • single push bar

Headrest

  • Wheelchair headrest options:
    • angle adjustable
    • height adjustable

Backrest

  • Wheelchair backrest:
    • angle adjustable (manually)
    • height adjustable
    • recline (manually)
    • slung style

Seat

  • Wheelchair seat:
    • depth adjustable

Frame

  • Manual Wheelchair frame:
    • aluminium
    • rigid
    • tilt in space

Models / Specifications

Model R82 Kudu Size 2: Standard
  • Height of Seat from Ground 480 mm
  • Angle of Recline for Backrest -5 degrees - 30 degrees
  • Range of Tilt In Space -3 degrees - 45 degrees
  • Camber of Wheels 6 degrees
  • Depth of Seat 270 mm - 370 mm
  • Width of Seat 180 mm - 300 mm (Width adjusted using hip supports)
  • Height of Backrest 400 mm - 520 mm
  • Load Capacity (supplier stated) 50 kg
  • Weight Overall 21 mg
Model R82 Kudu Size 3: Standard
  • Height of Seat from Ground 480 mm
  • Angle of Recline for Backrest -5 degrees - 30 degrees
  • Range of Tilt In Space -3 degrees - 45 degrees
  • Camber of Wheels 6 degrees
  • Width of Seat 180 mm - 340 mm (Width adjusted using hip supports)
  • Depth of Seat 350 mm - 450 mm
  • Height of Backrest 430 mm - 580 mm
  • Weight Overall 23 kg
  • Load Capacity (supplier stated) 60 kg
Model R82 Kudu Size 1: Standard
  • Width of Seat 180 mm - 260 mm (Width adjusted using hip supports)
  • Depth of Seat 220 mm - 320 mm
  • Height of Backrest 370 mm - 460 mm
  • Height of Seat from Ground 480 mm
  • Weight Overall 19 kg
  • Load Capacity (supplier stated) 40 kg
  • Angle of Recline for Backrest -5 degrees - 30 degrees
  • Range of Tilt In Space -3 degrees - 45 degrees
  • Camber of Wheels 6 degrees
Model R82 Kudu Size 4: Standard
  • Height of Seat from Ground 480 mm
  • Angle of Recline for Backrest -5 degrees - 30 degrees
  • Range of Tilt In Space -3 degrees - 45 degrees
  • Camber of Wheels 6 degrees
  • Width of Seat 180 mm - 380 mm (Width adjusted using hip supports)
  • Depth of Seat 350 mm - 450 mm
  • Height of Backrest 430 mm - 630 mm
  • Weight Overall 25 kg
  • Load Capacity (supplier stated) 60 kg

Suppliers (0)

    Agents (0)

      Importers (0)

        Manufacturers (0)

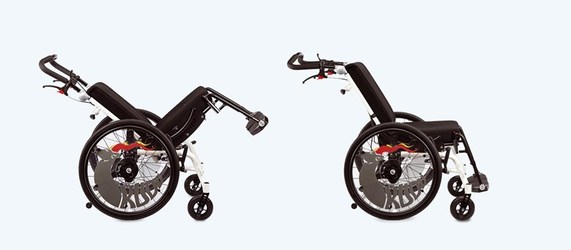

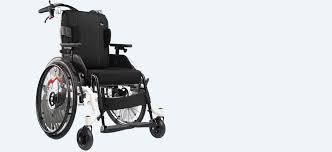

          Images

          23224 imagegen.ashx1
          23225 indexkudu
          23226 imagegen.ashx

          Maintenance

          Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
