1300 885 886 Independent Living Centres Advisory Service

Ascensa Platform Wheelchair Lift (PR19597)

33945 ascensa wheelchair lift

Ascensa Low Rise Platform Lift

https://ilcaustralia.org.au/products/19597

A platform wheelchair lift for indoor or outdoor use with push button operation. The lift allows a wheelchair user and their carer to travel between two floors. Suitable for heights of up to 1500mm.

General Details

Extra product information

Compliant with DDA / NCC 2014 guidelines for disability access to buildings.

Rate load: 340kg
Travel height: Up to 1.5m
Capacity: 1 Wheelchair User + Carer
Landings: Two
Drive system: Direct Mounted Hydraulic
Door clearance: 900 w x 1100 h
Power supply: 230v/10A
Door configurations: Auto Ramp, Self Closing Swing,
Automatic Swing

Manufacturer/Country
Contact Supplier for Details
Standards Compliance
Standards Number AS 1735.14-1998
Websites
Ascensa Wheelchair Lift - https://directlifts.com.au/ascensa/

Models / Specifications

Model Heavy Duty Model: Load capacity up to 500kg
  • Load Capacity (supplier stated) 500 kg
  • Length of Platform 1400 mm
  • Width of Platform 1100 mm
Model Standard : load capacity up to 340kg
  • Load Capacity (supplier stated) 340 kg
  • Length of Platform 1400 mm
  • Width of Platform 1100 mm

Suppliers (1)

Agents (0)

    Importers (0)

      Manufacturers (0)

        Images

        33946 cam00020 576x1024
        Ascensa Low Rise Platform Lift
        33947 mosman council
        Ascensa Low Rise Platform Lift

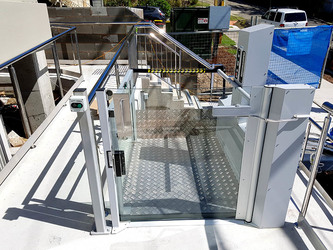

        33948 20160322 115636
        Ascensa Low Rise Platform Lift

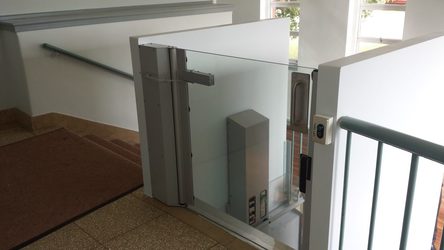

        33949 20140724 095333 1024x576
        Ascensa Low Rise Platform Lift
        33950 20150731 133022 576x1024
        Ascensa Low Rise Platform Lift

        Maintenance

        Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
