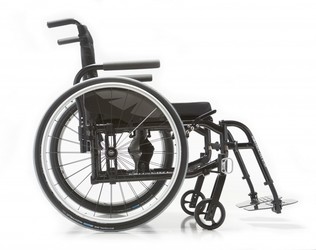

Helio C2 Carbon Fibre Ultralight Folding Manual Wheelchair (PR19855)

https://ilcaustralia.org.au/products/19855

A self-propelled, lightweight manual folding wheelchair with swing-away legrests. It has a carbon fibre frame and is designed for adults. It has a range of features and accessories available and can be customised. It is also available in a lightweight heavy duty version. The Motion Composites Transit Tie-Down Package is an optional extra. The Helio C2 wheelchair is available with a WC-19 Transit Tie-Down. This option is only offered as a factory-installed option. Please refer to the Transit Tie-Down Manual to operate the Transit Tie-Down Option safely.

General Details

Manufacturer/Country

Motion Composites / Canada

Standards Compliance

Standards Number AS/NZS 3695.1:2011 as of 28/4/17 to 120kg user weight

Websites

Motion Composites - http://www.motioncomposites.com/en/helio-c2/

Features

Accessories

• Wheelchair accessories:
  • anti-tips
  • back pack
  • calf strap
  • positioning belts
  • spoke guards
  • under seat bag
  • walking stick holder

Transport and Dismantling

• Wheelchair transport:
  • folds for transport
  • secure by transport tie downs for transport of wheelchair only

Brakes

• Manual Wheelchair brake options:
  • an extended lever
  • attendant controlled brake on push handle
  • lever type
  • pulling towards occupant to lock
  • pushing away from occupant to lock
  • scissor type

Wheels

• Wheelchair tyre options:
  • fully customisable (a large range of wheels are available including high performance)
  • pneumatic
  • quick release axles
  • solid
• Wheelchair castor options:
  • pneumatic
  • solid

Footplates

• Wheelchair footplate options:
  • aluminium
  • angle adjustable
  • composite
  • heel loops
  • height adjustable
  • lift up platform
  • one piece
  • swing away
  • two piece

Legrests

• Wheelchair legrest options:
  • elevating (manual)
  • length adjustable
  • removable
  • stump supports
  • swing away

Armrests

• Wheelchair armrest options:
  • desk length
  • height adjustable
  • removable
  • sideguards

Push handles

• Manual Wheelchair push handle options:
  • height adjustable
  • stroller style handle

Backrest

• Wheelchair backrest options:
  • angle adjustable (manually)
  • a range of off-the-shelf backrest options available
  • no backrest (a large range of backrests can be fitted)
  • tension adjustable
  • upholstered

Seat

• Wheelchair seat options:
  • flat seat pan (for use with a large range of cushions)
  • slung style
  • upholstered

Frame

• Manual Wheelchair frame:
  • carbon fibre
  • folding
  • lightweight
  • self propelling

Models / Specifications

Model Helio C2 Carbon Fibre Ultralight Folding Manual Wheelchair- Standard: Standard

• Load Capacity (supplier stated) 120 kg
• Height of Backrest 305 mm - 533 mm
• Depth of Seat 356.0, 381.0, 406.0, 432.0, 457.0, or 483.0 mm
• Width of Seat 356.0, 381.0, 406.0, 432.0, 457.0, or 483.0 mm
• Weight Overall 5.4 kg (Starting weight of frame only)

Model Helio C2 Carbon Fibre Ultralight Folding Manual Wheelchair- Heavy Duty: Heavy Duty

• Depth of Seat 0 mm - 0 mm (As standard model)
• Width of Seat 0 mm - 0 mm (As standard model)
• Load Capacity (supplier stated) 120 kg
