U-Stand Frame (PR20862)

https://ilcaustralia.org.au/products/20862

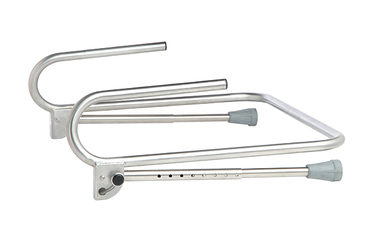

A stainless steel frame that is designed to assist a person with transfers in and out of bed. The two legs are height adjustable to enable the frame to sit level on the mattress. Must be removed from bed after each use. It folds for storage and transportation.

General Details

Method of Use

Safe Use (supplier stated):
1. This is not an independent use device.
2. Use of the U-stand frame must always be supervised by a trained person.
3. Tested to 125kg safe working limit.
4. Bas of frame (U-shaped section) must have full contact with surface of mattress.
5. Extend both legs out to equal length/height making sure they are locked at 90 degrees.
6. Explain the procedure to the user before using the frame.
7. Take care to ensure no contact is made with any part of the users body when loading the frame in place.
8. Watch your fingers when folding away the legs.

Caution: Bed Rails / Bed Sticks

Careful consideration needs to be taken when choosing a bed rail or stick. Incorrect positioning of the bedrail can lead to injury or death. They may increase the risk of injury to the occupant in several ways. Entrapment of limbs or body parts may occur within the rails, or between the rails and the bed. This may occur to those having a seizure, or rolling over in bed, or if unstable while transferring out of bed.
Bed rails can cause some occupants to become anxious while in bed. They may try to climb over the rails, particularly if the occupant has a condition such as dementia.
May not be suitable for a person who has ; a cognitive impairment with or without reduced mobility; reduced alertness and/or disorientation; a history of falls from bed.
It is recommended to check regularly that the bed stick is always positioned as close to the mattress edge as possible.
It should not be used in circumstances where there is a gap between the bed stick and the mattress, or potential gap if the device or mattress moves due to possible risk of entrapment.
A risk assessment is recommended prior to provision
For further information:
http://www.otaus.com.au/sitebuilder/advocacy/knowledge/asset/files/21/otapositionpaper-bedstickuse(march2015-final).pdf

Manufacturer/Country

INNOVO Healthcare

Websites

Innovo Healthcare - http://www.innovohealthcare.com.au/

Models / Specifications

Model U-Stand Frame : One model only

• Load Capacity (supplier stated) 125 kg
• Weight Overall 3.7 kg
• Height Overall 620 mm - 796 mm
• Width Overall 655 mm
• Depth Overall 630 mm
• Height of Handle 170 mm
