Wenzelite Drive Medical MSS Tilt and Recline Seating System (PR21203)

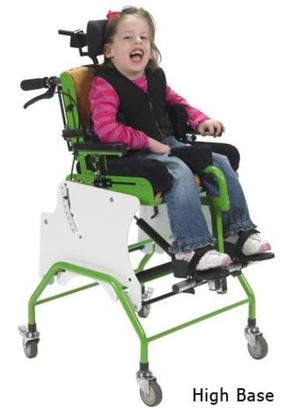

27598 mss tilt recline seating system high base

Seating system on high base

https://ilcaustralia.org.au/products/21203

The MSS Tilt & Recline Seating System is a multi-adjustable paediatric seating system with built in growth. The seat base can be used independently or with a mobile base available in two different heights.

General Details

Method of Use

Tilt mechanism operates with hydraulic actuator via lever on attendant handles.

Manufacturer/Country
Drive Medical
Websites
MSS Tilt and Recline Seating System Brochure - http://cdn.medicaleshop.com/media/pdfs/wenzelite%20drive%20medical/brochure/mss-tilt-&-recline-seating-system.pdf

Features

Cover

  • Cushion cover:
    • removable

Seat

  • Chair seat:
    • depth adjustable
    • padded
    • upholstered

Optional Accessories

  • Wheelchair accessories:
    • abduction wedge / pommel
    • Chest Strap
    • positioning belts
    • thigh supports
    • Tray Table

Armrests

  • Chair armrests:
    • height adjustable

Footplates

  • Wheelchair footplates:
    • angle adjustable
    • depth adjustable
    • height adjustable

Headrest

  • Wheelchair headrest:
    • angle adjustable
    • depth adjustable
    • height adjustable
    • padded

Postural supports

  • Stroller postural support options:
    • adjustable chest harness
    • adjustable pelvic belt
    • ankle / foot straps
    • pommel

Models / Specifications

Model High Base: Child is higher
  • Height of Seat 609.6 mm
  • Weight 3.3 kg
Model Low Base: Child is lower to the floor
  • Height of Seat 431.8 mm
  • Weight 3.2 kg
Model Seating Base: Seat features
  • Load Capacity (supplier stated) 45.36 kg
  • Distance Between Lateral Supports 229 mm - 381 mm
  • Height of Seat from Ground 356 mm
  • Length from Seat to Footrest 102 mm - 267 mm
  • Seat to top of backrest 356 mm - 483 mm
  • Weight of Seat 15.9 kg
  • Depth of Seat 89 mm - 305 mm
  • Width of Seat 229 mm - 267 mm

Suppliers (0)

    Agents (0)

      Importers (0)

        Manufacturers (0)

          Images

          27599 mss tilt recline seating system low base
          Seating system on low base
          27600 mss tilt recline seating system seat
          Seating system
          27601 mss tilt recline seating system with tray
          Seating System with tray

          Maintenance

          Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
