Panthera U3 Light Manual Wheelchair (PR21957)
Panthera U3 Light
https://ilcaustralia.org.au/products/21957

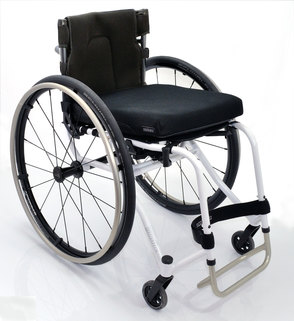

A lightweight rigid wheelchair designed for active users. It is designed for an active wheelchair user as it has a "tippy" balance point. The standard model has a rigid rear axle of carbon fibre, lightweight rear wheel, aluminium footrest, rolling castors, arm brake, and a seat bag. The foldable back rest has no locking mechanism. It is available in two models: U3 Light and U3 Light L which has a more ”tippy” balance point. On the U3 Light L the rear axle is moved forward an additional 22 mm. Fine adjustment of the balance is possible by adjusting the backrest forward or backwards by10mm. Standard colours are pearl white or anodic black.
General Details
- Crash Test Information for Wheeled mobility devices
This wheeled mobility device meets the design requirements and has been successfully crash tested in accordance with ANZS/ISO 7176-19:2008 MOD. This standard relates to the design requirements specified for a wheeled mobility device to be used to transport an individual in a motor vehicle.
- Manufacturer/Country
- Panthera / Sweden
- Websites
- Panthera U3 Light - http://www.panthera.se/en/produkt_U3_light.html
Models / Specifications
- Model Panthera U3 Light: Standard model
-
- Width of Seat 330.0, 360.0, 390.0, 420.0, or 450.0 mm
- Width Overall 540.0, 570.0, 600.0, 630.0, or 660.0 mm
- Diameter of Castor 90 mm
- Height of Backrest 250.0, 300.0, or 350.0 mm
- Depth of Seat 350 mm - 460 mm
- Height of Seat Rear 430 mm
- Angle of Seat 7 degrees
- Weight Overall 3.8 kg (Transport weight (from 3.8kg))
- Height Overall 640 mm - 840 mm
- Length Overall 825 mm
- Load Capacity (supplier stated) 100 kg
- Height of Seat from Ground 470 mm (front of seat)
Suppliers (0)
Agents (0)
Importers (0)
Manufacturers (0)
Images
Panthera U3 Light folded
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
