Redgum Compact Side Folding Walker (PR21963)

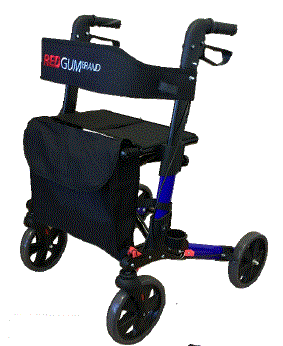

29609 compact walker

Folded

https://ilcaustralia.org.au/products/21963

The Compact Side Folding Walker is a side folding four wheeled walker with 8" wheels and a seat height of 560mm. The walker has a side folding mechanism which folds down to a compact size.

General Details

Folding Mechanism

Spring-loaded push button: depress and hold down the push button whilst folding in the sides of the frame. When unfolding ensure the buttons lock into place.

Pull cord: pull upwards on the wooden ball to fold the front and back legs together.

Height adjustment mechanism

Spring-loaded push button. Depress and hold down the spring-loaded button whilst sliding the extension leg up or down to the desired set of holes. The extension leg height should be determined by the users own height to ensure the most effective and safe position. Make sure the spring-loaded button is fully extended through the desired hole before putting weight on the item.

Walking frame brakes

Push down brakes activate by pushing down on the handles or by sitting on the seat. Cable Brakes activate by squeezing the brake handle towards the hand grip (e.g. similar to bicycle brakes). They can be applied temporarily or locked into position. Castor brakes are activated by pushing the lever down with your foot.

Manufacturer/Country
Redgum Brand / Australia

Models / Specifications

Model base: base
  • Load Capacity (supplier stated) 120 kg
  • Length Overall 700 mm
  • Number of wheels 4 units
  • Height Overall 960 mm
  • Weight Overall 8.85 kg
  • Height of Handle 800 mm - 960 mm
  • Diameter of Castor 200 mm
  • Width of Seat 460 mm
  • Height of Seat from Ground 560 mm
  • Width Overall 610 mm

Suppliers (1)

Agents (0)

    Importers (0)

      Manufacturers (0)

        Images

        29610 compact walker
        33241 side folding compact walker folded
        Folded

        Maintenance

        Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.

        Standards

        Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing, and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For more information about standards see http://www.ilcaustralia.org.au/Using_Assistive_Technology/standards_regulation
