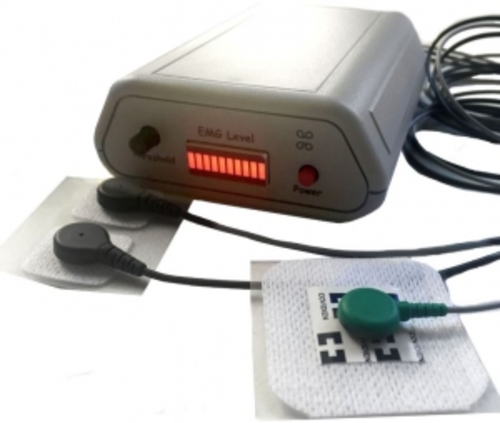

The Tinkertron EMG switch is a switch that can be activated by very small individual muscle activation. The switch interface can be used as an emergency alert, mouse click, wheelchair control and switch control for communication devices. It has an activation time of 10ms and adjustable threshold for more accurate use. An onboard digital processor assists in determining intentional weak movements. Power is provided via USB, wall plug or an extra battery pack.
General Details
Additional Specifications
- Small 3.2”W x 1.3”H x 4.8”L enclosure — with 10ms response rate
- Senses muscle activations and provides switch closure
- Simple threshold adjustment

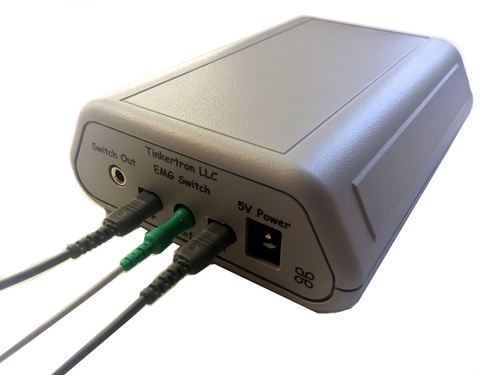

- Provides standard 3.5mm connector to control switch activated devices
- Built in digital signal processing extracts intentional activations from weak muscles
- Safe battery powered operation using standard external USB rechargeable battery packs
- Built in battery and charger
- Compatible with readily available Ag/AgCl EMG patch electrodes
The sensor is connected directly on the muscle site. The sensor does not depend on motion so it remains in the proper position even as you move around.
The EMG switch can control any device or program that accepts switch input.
Manufacturer/Country
Tinkertron/USA
Warranty
Check with supplier
Websites
- EMG Switch - http://www.emgswitch.com/
- Supplier website - http://www.zyteq.com.au/products/switches_and_connectors/emg-switch?inf_contact_key=be08db2a05de924b550cc5ef25cafc29842e21bb64e2541714df68ba4c5985d0#
- Manufacturer website - http://www.tinkertron.com/
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
Models / Specifications
Model EMG switch: One model only
- Height Overall 1.3 inch
- Number of Switch Inputs 1 units
- Width Overall 3.2 inch
- Length Overall 4.8 inch
Features
Contact listed suppliers to confirm features, options and models available.
Access Options
-
Powered Wheelchair control:
- joystick
- joy stick
-
Switch activation:
- muscle contraction
-
Battery type:
- Rechargable
-
Environmental Control:
- Switch toy port
Set Up or Installation
-
Operating system(s) :
- Android
- Windows
-
Switch Functions Available:
- Joystick buttons
- Left Click
-
Switch Interface Set Up :
- Switch function adjusted on computer software
- Switch function adjusted on device
-
Switch Interface Connections:
- USB
Power Source
-
Power source:
- charger lead into a plug point
- Rechargeable battery
- USB connection with a mains powered device
Standard Features Included
-
Switch Interface Features:
- External switch jacks
-
Switch Functions Available:
- Joystick buttons
- Left Click
