General Details

Additional Specifications

Standard features:

Finish: The lift has a clear shell and half height door with grey panelling.

Half Height Door: The door of the lift is interlocked and made to match the finish.

2 X Remote Controls: The lift can be called and sent remotely and is useful for moving heavy objects.

Two-Year Warranty: All Compact Home Lifts include a standard two-year parts and one-year labour warranty with one service included.

LED strip lights: Internal LED’s are programmed to turn on once the user has entered the lift and turn off once exited.

Battery Back-Up: If there is a power cut or outage while using the lift it will descend to the lower level of the home and wait until the power is back on.

Full Height Light Curtain: A light curtain is included when fitted with a half-height door.

Options

Optional extras:

Fold Down Seat: This is a useful option if the user has trouble standing even for short periods.

Full-Height Door: The door of the lift is interlocked and replaces the half-height door and full height light curtain standard feature.

Uninterruptible Power Supply: A UPS will allow the lift to be powered temporarily, when the mains power fails if you are between floors.

Extra product information

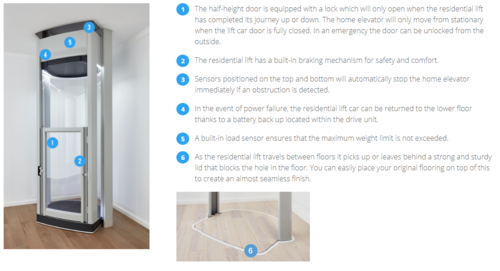

Safety features:

Full Height Light Curtain: A full-height motion sensor is situated at the entrance of our lifts (unless a full height door is chosen). If this barrier is crossed the lift stops immediately.

Safety Lid Plug: This plugs the opening in the floor when the lift is downstairs. You can stand on it and your original flooring can be integrated into the lid to blend with the rest of your room.

Key Switch Operation: This allows the owner to isolate the lift if the need arises. This is commonly used when going away on holiday or when the grandchildren visit.

Top & Bottom Safety Pans: Using our obstruction sensors, a Compact Home Lift can detect objects above or below the lift which will make it stop.

Hold-To-Run Controls: Operating a Compact Home Lift requires constant pressure to the controls. This allows the user to ‘drive’ the lift and feel in total control.

Weight Limit Sensors: Our Compact Elegance Home Lifts are limited to 375lbs (170kg). The lift detects anything exceeding this limit and will not travel.

Out Of Balance Sensors: Sensors will detect if the lift is out of balance and prevent it from moving.

Fall Arrest Mechanism: This patented system prevents the lift from falling in the unlikely event of the steel ropes going slack.

Emergency Stop Button: This button is front and centre for the user in the event of an emergency so the lift can be stopped.

Over Speed Detection: The lift uses a sensor to detect the speed of travel. If this increases beyond a certain amount, the sensor will stop the lift from moving.

Manufacturer/Country

Altitude Lifts

Warranty

24 month parts warranty

Websites

• Altitude Lifts - http://www.altitudelifts.com.au
• Facebook Page - http://www.facebook.com/AltitudeLiftsWA/?ref=bookmarks

Maintenance

Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.

Models / Specifications
