Jacob Stair Climber (PR23326)

33606 jacob stair climber

Jacob Stair Climber

https://ilcaustralia.org.au/products/23326

The Jacob Stair Climber is a device designed to move a passenger and their wheelchair up and down stairs. It features rubber tracks and a motor to transport loads of up to 169kg. It also has an automatic braking feature allowing to stop on the stairs, and can be folded for transport and storage purposes. Made from aluminium alloy. Different size wheelchairs can be accommodated (minimum width 480mm, maximum 680mm).

General Details

Method of Use

Operators should practice without passengers until familiar with its operation.

Additional Specifications

Stair Requirements:
• Stair: ≥ 60cm wide
• Max stair angle: ≤70 degrees
• Max distance between stairs: ≤ 70cm
• Min Turning Space or landing: 120cm x 110cm
• Straight stairs: Yes
• Curved stairs: No
• Jacob can lift wheelchairs 48- 68 cm in width

Manufacturer/Country
Contact supplier for details
Websites
Stair Climbers - Jacob - https://www.stairclimbers.com.au/product/jacob/

Models / Specifications

Model Jacob Stair Climber: Attendant operated device designed to move a wheelchair up and down stairs
  • Number of wheels 4 units
  • Load Capacity (supplier stated) 169 kg
  • Height Overall 1120 mm - 1500 mm
  • Width Overall 560 mm
  • Voltage of Battery 24 V
  • Weight of Battery Pack 3 kg
  • Weight Overall 29 kg

Suppliers (1)

Agents (0)

    Importers (0)

      Manufacturers (0)

        Images

        33607 jacob stair climber %281%29

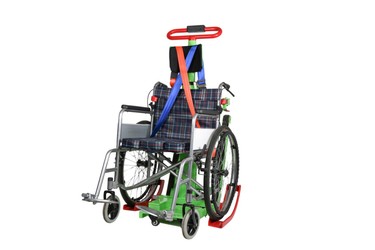

        Jacob Stair Climber - with wheelchair attached
        33608 jacob stair climber %282%29

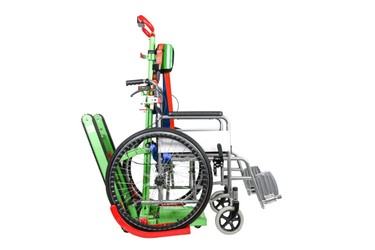

        Jacob Stair Climber - with wheelchair attached, side view

        Maintenance

        Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
