General Details

Extra product information

The lifts have injection moulded fire retardant resin casings.

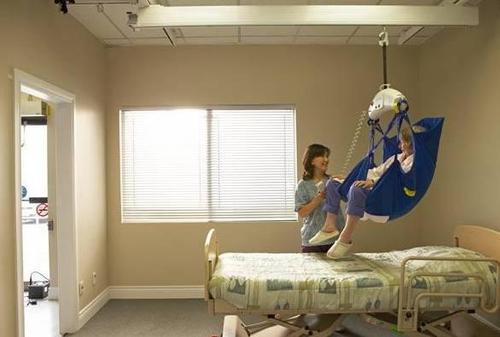

The transpoint lift can be used to transfer a person from room to room, including rooms with different ceiling heights, through doors with door headers. Each lift system is fitted with a set of attachment rings that are used to facilitate the transfer hook up. One transfer strap is required for each track transfer point.

The Griffin portable lift has a maximum load of 193 kg and can be operated by a single carer. The Griffin lift has a room-through-room feature allowing continuous transverse through a doorway.

The Griffin has removable batteries, a built-in handle, and a revolutionary ergonomic design. The charger is included in the base price. The lift has a carry handle, a full width carry bar with curved shape, on-board controls. There are positive locking latches which secure the sling each time. The lift is charged with standard plug and socket. Safety features include over speed governor, built in safety limits, slack strap sensor and emergency lowering

Griffin Lift, Griffin Standard Lift & Griffin P 425
Charger Output: 24 VDC, 1.5 Amps
Batteries: 24 VDC (2 x 12 VDC), 2.0 AH
Lift Case: Flame Retardant ABS
Hand Control: Pneumatic (Optional Infra Red)

Ceiling Tracks:
A range of ceiling tracks are available in a range of lengths and some can be customised. The tracks can be straight, 45 degree curve or 90 degree curve.

There a range of slings to use with the lifts. There are universal mesh slings for bathing or padded slings, with or without head support. The range includes hygiene, hammock, positioning, walking and rehabilitation standing slings. The sizes range from XS, S, M, L, XL and XXL with a maximum or 368kg load capacity.

Options

Accessories
Adjustable lanyard (3 sizes)
Aluminum reacher (2 sizes)
Fixed Lanyard (3 sizes and custom length option)
Trolley Assembly
Transpoint End-Stop (3 adjustable sizes and custom length option)
Transpoint Carry Bar

Griffin Lift (options)
Griffin reacher
Hand control
Battery pack
Infra red hand control

Installation accessories and general accessories (may vary depending on model)
Multiport turntable
Quick fit 90 degree turntable
Manual or power gantry for all models
Four, six or eight channel curly cord
C Series Charger Endstop
Hand control wall box
TA locking carry bar
Weigh scales
Free Standing overhead systems, including T-shape 3-post system, square 4 - post system and Cross-shape 3-post bathroom system.

Caution: Lifting and Transferring people - Hoists

It is recommended that prior to using this product. training in manual handling and the correct use of assistive devices should be undertaken.

Manufacturer/Country

UK

Warranty

Unknown

Standards Compliance

Standards Number

ISO Z-10535

Websites

• - http://www.prismmedicalinc.com/portable-patient-ceiling-lifts.html

Maintenance

Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.

Models / Specifications

Features

Contact listed suppliers to confirm features, options and models available.

Safety

• Hoist safety features:
  • emergency lowering

Transport and Dismantling

• Hoist storage / portability:
  • does not dismantle or fold for transport

Power Source

• Hoist power source :
  • battery powered
  • rechargable battery

Controls

• Hoist controls:
  • electric hand held control

Attachment

• Hoist Spreader Bar attachments:
  • loop attachment on the sling

Ceiling Hoist Tracking

• Ceiling hoist tracking:
  • roof mounted

Type of hoist

• Hoist type:
  • overhead/ceiling hoist
