FM Mattsson Thermostatic Mixing Valves (PR03453)

17416 pr03453%20fm%20mattsson%20thermostatic%20mixing%20valves

FM Mattsson Thermostatic Mixing Valves

https://ilcaustralia.org.au/products/3453

The thermostatic mixing valves are designed to control the maximum temperature of blended water and are suitable for use with mains pressure water systems only. Exposed and concealed thermostatic mixing valves are available and both feature adjustable and fixed temperature models.

General Details

Extra product information

The selected temperature is maintained regardless of variations in water pressure or temperature and an anti scald device automatically shuts off the water if hot or cold water supply fails.

. Models are available to suit showers, baths, basin and dual outlets.

* The water temperature of the thermostatic mixing valves is designed to remain within one degree of the temperature set.
* This range is compatible with a mains pressure hot water supply or pump system greater than 100 kpa.
* These mixing valves can be used as a central point to regulate variations in water temperature and pressure in a multi outlet system. For example a bath, basin and shower can be regulated by a central thermostatic mixing valve. Each outlet is required to be located within six metres of the central mixing valve.
* The fixed temperature model features a fixed preset maximum water temperature of 38 degrees Celsius.
* The adjustable temperature model features a lock button that must be pressed while simultaneously turning the temperature knob to increase the water temperature.
* A range of finishes and trims available including chrome, white and platinum.

Options

* Bath or shower mixing tap.
* Bath tub spout.
* Bath tub spout with shower diverter and hose connection.
* Shower set with hand held shower.
* Lockable unit with key.
* Stop valve for bath tub and shower mixers.

Maintenance

* Refer to supplier or manufacturer manual or instructions for all safety and maintenance details.
* Manufacturer recommends a maintenance check approximately every two years in domestic situations.

Manufacturer/Country
Sweden
Websites
- http://www.awardbrands.com.au/PDF/FM%20Mattsson%20Brochure.pdf

Models / Specifications

Model FM Mattsson Pressure Balanced Thermostatic Mixing Valves: Available in a range of models

Suppliers (1)

Agents (0)

    Importers (0)

      Manufacturers (0)

        Images

        20618 8149024c

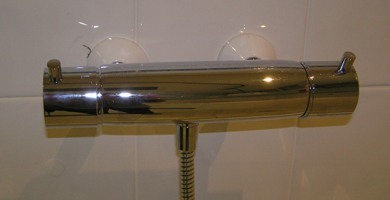

        Thermostatic Mixing Valves
        20619 8149024e
        Thermostatic Mixing Valve

        Maintenance

        Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.

        Standards

        Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing, and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For more information about standards see http://www.ilcaustralia.org.au/Using_Assistive_Technology/standards_regulation
