The Garaventa Genesis Vertical Lift Series are electrically operated vertical platform wheelchair accessible lifts, transporting occupants from 1.04 to 4.27 metres. Suitable for indoor or outdoor applications, domestic or commercial. The rated load is 340kg. Lift is mains power operated with battery backup. Available in three models.

General Details

More Information to Come

Genesis Shaftway Wheelchair Lifts Options:

Full Time Battery Operation - Hydraulic Model only (optional)

For low usage applications, full time battery operation is available. The drive is powered by a 24VDC battery pack charged from the building mains power by an integrated automatic charger. Continuous mains power is required if the lift is equipped with a fan and ventilation system.
Finishes (optional)

Finishes for the Genesis Shaftway model include the steel panels and aluminum extrusions to be painted from a large selection of RAL Colors.
Custom Colors or Exotic Finishes (optional)

Garaventa can offer custom color matching, Graphic Imaging and Exotic Finishes. The panels can also be supplied with wood finishes, Formica, architectural metals or any material not exceeding 1/2" in thickness.
Garaventa Style Door and Upper Landing Gate (optional)

The Garaventa style door and gate are prehung in an anodized aluminum champagne colored extrusion frame. They are constructed of 16 gauge powdered coated galvanized steel.
Garaventa Power Door Operator (optional)

The Garaventa Power Door Operator (PDO) automatically opens the door/gate when the platform arrives at the landing. When the lift is at the landing, the passenger can press the call station switch or gently pull on the door or gate to activate the door opener. Power door operators are recommended if the lift has a ramp. Certain applications may limit the use of this operator Consult you authorized Garaventa representative for which door operator is appropriate for your application.
Fire Rated Doors (optional)

The fire rated door and frame is completely prehung and is constructed of 16 gauge steel. The rigid foam filled door has a vision panel and a delayed action door closer. The door and frame have an 1 1/2 hour "B" label fire rating with an integrated interlock system.
Call Station Controls (optional)

Illuminated and tactile constant pressure button call stations are available as an option.
Attendant Call (optional)

In situations where the lift must be attendant operated, the call stations can be modified to include an attendant call button.
Platform Controls (optional)

Illuminated and tactile constant pressure button controls are optional. These controls are equipped with an audible illuminated Emergency Stop/Alarm switch and courtesy lights that are activated when the passenger enters the lift and during operation. The platform controls can also be equipped with an optional key switch.
Autodialer phone (optional)

The lift can be equipped with a hands free autodailer phone. This BCA compliant phone is activated by the push of a button and automatically dials pre-programmed numbers to summon assistance. It provides audible and visible feedback to the passenger that assistance is on the way. The phone is integrated with the platform controls and is flush mounted. This option will require the building owner to provide and maintain an active telephone line to the mast location.
Folding Seat (optional)

The lift can be equipped with a folding seat which is ideal for passengers who do not use a wheelchair.
Three Stop-Unit (optional)

The Genesis can be configured for three landings. The lower and middle landings must have a full height door and the upper landing may have either a full-height door or gate.
Battery Powered Emergency Lowering - Leadscrew Drive only (optional)

This emergency lowering system is automatically activated in the event of a power failure.
Arrival Gong and Platform Sidewall Mounted Digital Floor Display (optional)

The arrival gong option will provide an audible alert when the platform arrives at a landing. The digital floor display will show the direction of travel when the lift is in operation. It will also show the designated floor when the lift is stopped at a landing.
Offset D Handle (optional)

The offset d handle is available as an option on both Garaventa doors and gates.

Extra product information

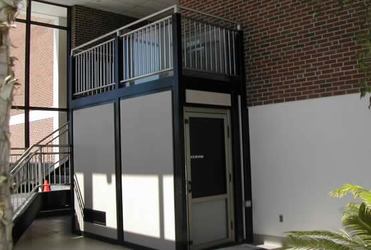

Shaftway Model
The Genesis Shaftway Model fits inside a vertical runway that is built by others in accordance to Garaventa specifications. The system consists of a drive mast, passenger platform, doors and gates. It can be completely enclosed, much like an elevator shaftway, or can be open at the upper landing.
. Lifts inside a vertical runway
. Rated Load - 340kg
. Choice of seven lifting heights (up to 4 metres)
. Choice of two drive systems
. 90°, 180° or 360° entry / exit configurations
. Three stops

Enclosure Model
The Enclosure Model is a complete, self contained vertical platform lift. It is similar to the Shaftway Model except it includes its own prefabricated shaftway enclosure with integrated doors and gates. The Enclosure can also be fitted with a Plexiglas dome for weather
protection.
. Complete, self contained vertical lift
. Rated load - 340 kg
. Choice of seven lifting heights (up to 4 metres)
. Choice of two drive systems
. 90°, 180° and 360° entry / exit configurations
. Three stops

OPAL Model
The Genesis OPAL Model is a short rise vertical elevating system that can be installed directly on the floor or in a pit. This durable and easy to use unenclosed vertical platform lift is ADA compliant and suitable for indoor or outdoor applications requiring vertical transportation up to 1.5 metres.
. Unenclosed vertical lift
. Rated load - 340kg
. Two lifting heights - 1.04m and 1.45m
. Choice of two drive systems
. 90° and 180° entry / exit configurations
. Two stops

Installation

In the ACT, the Scaffolding and Lifts Regulation 1950 requires the installer of the lift (the Lift Company) to submit a 'Notice of Intention to Erect or Alter a Lift'. This applies to all lifts including service lifts and disabled access lifts. All lifts that are installed in the ACT need to comply with the current Lift Code of Australia.

Once the lift is erected, the lift company will contact WorkCover to arrange a "pre-commissioning inspection and test " on the lift (both new and upgraded). WorkCover charges an initiation fee of $39.10 plus $26.65 per hour for this service. (This fee is revised regularly). There is no requirement for the owner to arrange an annual inspection. For more information, contact ACT WorkCover on 6205 0200.

Information correct April 2007

Manufacturer/Country

Garaventa (Canada)

Websites

PR King & Sons - Homepage - http://www.prking.com.au/Home.aspx

Models / Specifications

Model Shaftway Model: Lifts inside a vertical runway

• Depth Overall 1409 mm
• Depth of Platform 1370 mm
• Width Overall 1415 mm
• Width of Platform 962 mm
• Load Capacity (supplier stated) 340 kg
• Distance of Travel 4 m

Model Opal Model: Unenclosed short rise vertical lift

• Load Capacity (supplier stated) 340 kg
• Distance of Travel 1.04 m
• Distance of Travel 1.45 m

Model Enclosure Model: Completely self contained vertical platform lift

• Width Overall 1420 mm
• Width of Platform 914 mm
• Depth of Platform 1370 mm
• Depth Overall 1508 mm
• Load Capacity (supplier stated) 340 kg
• Distance of Travel 4 m
