General Details

Installation

1. Locate frame to place pivot tube in line with your hip position when lying down.
2.Slide support frame between box spring and mattress.
3. Secure support frame to angle iron with supplied strap.
4. Slide rail into pivot tube of support frame.
5. Set height of rail in locked position and secure safety latch with hex key.
6 Install crutch tips.
7. Ensure rail does not impact, interfere or compromise use of surroundings.

Safety and Usage Advice

The Smart Rail is intended for moderate vertical load bearing only. Do not use if sideward (lateral) support is needed.
Don't use on wet or slippery floors.
Do not use with electric hospital style beds.
Supplied strap must be installed for secure operation.
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.

Caution: Bed Rails / Bed Sticks

Careful consideration needs to be taken when choosing a bed rail or stick. Incorrect positioning of the bedrail can lead to injury or death. They may increase the risk of injury to the occupant in several ways. Entrapment of limbs or body parts may occur within the rails, or between the rails and the bed. This may occur to those having a seizure, or rolling over in bed, or if unstable while transferring out of bed.
Bed rails can cause some occupants to become anxious while in bed. They may try to climb over the rails, particularly if the occupant has a condition such as dementia.
May not be suitable for a person who has ; a cognitive impairment with or without reduced mobility; reduced alertness and/or disorientation; a history of falls from bed.
It is recommended to check regularly that the bed stick is always positioned as close to the mattress edge as possible.
It should not be used in circumstances where there is a gap between the bed stick and the mattress, or potential gap if the device or mattress moves due to possible risk of entrapment.
A risk assessment is recommended prior to provision
For further information:
http://www.otaus.com.au/sitebuilder/advocacy/knowledge/asset/files/21/otapositionpaper-bedstickuse(march2015-final).pdf

Extra product information

Support rail material: Alloy steel
Support frame material: Tubular steel
Finish: Anti-microbial white power coat gloss
Rail grip: Grey, deluxe foam, does not contain latex
Options: Leg extenders to increase rail height
Safety straps: Holds the support frame from pulling out under heavy use. Two straps are supplied that loop around the opposite bed frame rail and can be tightened and released with a side release buckle.

RAIL
Smart-Rail is intended for vertical weight bearing only on rail
The rail can be used on different height beds - the height of the Safe Latch on the rail can be adjusted using an allen key. It has a padded hand grip for comfort. The legs have slip resistant white rubber tips.

MATERIALS
The frame is rigid tubular steel construction with baked enamel finish.

SAFE LATCH
Provides positive locking of rail at bedside. Rail is lifted 25mm to unlock.

SAFETY STRAPS
Secure the frame to prevent it pulling out under heavy use. Two straps are supplied that loop around the opposite bed frame rail. These are fastened with a slide release buckle.

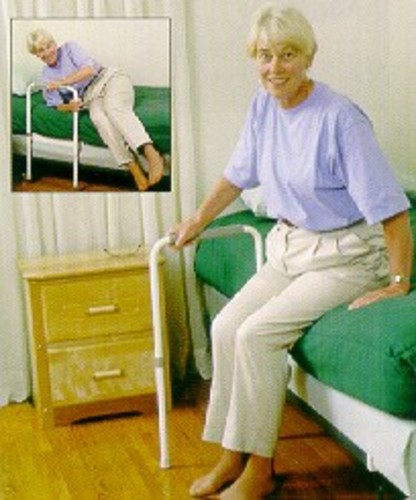

Smart-Rail is suitable for persons who
. have difficulty sitting up or standing up from bed

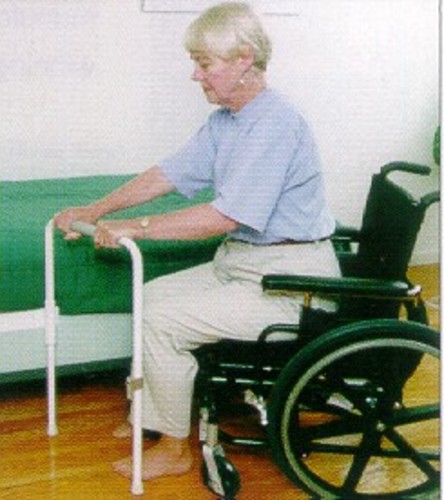

. transfer from bed to a wheelchair or walker
. use a bedside commode
. are subject to poor balance or falls

Manufacturer/Country

Canada

Warranty

12 months

Websites

• Healthcraft Smart Rail - http://healthcraftproducts.com/healthcraft-products/smart-rail/

Maintenance

Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
