Pressalit Indivo Height Adjustable Kitchen Benches and Cupboards (PR05142)

https://ilcaustralia.org.au/products/5142

Height adjustable lifting frames that are adaptable to most standard kitchen components such as worktops and wall cupboards. They allow users to adjust both cabinets and work surfaces to a comfortable and accessible height. Frames are available in a wide range of sizes to suit all types of kitchens and can include sinks, taps, cook tops or bench space. (Worktops and cupboard units are not included with the Indivo system). Bench tops are available with manual or electric controls. A range of accessories is available including flexible plumbing and insulation. Safety plates are available to reduce the risk of pinch / crush issues.

General Details

Extra product information

More Details:
* The lifts can be adapted to most standard kitchen components allowing the flexibility to choose almost any style
* They allow users to adjust both cabinets and work surfaces to a comfortable and accessible height
* The design of the lifts ensures that no components are visible after installing the wall cupboards

Safety
* The work top should be equipped with a pressure sensitive safety bar under the frame and the wall cupboards with a pressure sensitive safety plate underneath (These prevent injury from pinching / crushing)
* The safety systems on several lifts can be linked, for example, if there is a jar on a work top and the work top is raised, the wall cupboard's safety plate will register the impact, even though it is the work top which is active

Materials
* Aluminium telescopic legs, cross braces and safety bars
* ABS plastic cable trays, switches and safety plates

Lift systems -

Electric lifts
For fixed work tops
* Lift heights are adjusted via switches in the front edge
* Operating switches can be placed in any position along the front edge
* The switches are colour coded - aluminium to operate work tops and red to operate wall cupboards
* Can be adjusted in height over a range of 280mm
* Load capacity (evenly distributed) is 100 kg including work top
* Optional hand held control

For freestanding work tops
* Can be used in rooms in which the walls are not strong enough to support the wall mounted models
* Lift heights are adjusted via switches set in the edge or directly under the work top
* Operating switches can be placed anywhere
* The design of the lift makes is possible to use the work top from all sides
* Can be adjusted in height over a range of 300mm
* Load capacity (evenly distributed) is 100 kg including work top

For wall cupboards
* Adjusted via switches in the front work top edge
* Operating switches can be placed anywhere along the front edge
* The switches are colour coded - aluminium to operate work tops and red to operate wall cupboards
* Lift motors are discreetly located regardless of the position of the cupboard
* When the wall cupboards are lowered 430 mm to their lowest position, they are also extended 180 mm towards the user
* Load capacity (including cupboard) is 110 kg for one lift motor and 220 kg for two lift motors
* Optional hand held control

Manual lifts
For work tops
* Adjusted in height using a crank handle
* Can be used with work tops with or without an edge
* The crank handle socket can be positioned anywhere along the front edge, except under a sink or hob
* Can be adjusted in height over a range of 300mm
* Load capacity (evenly distributed) is 100 kg including work top

For freestanding work tops
* Adjusted in height using a crank handle
* Can be used with work tops with or without an edge
* The crank handle socket can be positioned anywhere along the long sides of the work top
* Can be adjusted in height over a range of 300mm
* Load capacity (evenly distributed) is 100 kg including work top

Brackets
For work tops
* Adjusted in height using a spanner (one person operation)
* Can be adjusted in height over a range of 250mm
* Load capacity 75 kg including work top

INSTALLATION:
Professional installation required.

Manufacturer/Country

Pressalit / Denmark

Websites

- http://www.enware.com.au/Height-adjustable-worktops-and-cupboards/default.aspx

Models / Specifications

Model Wall Cupboard Electric Lifts: Lifts allow wall cupboards to be moved diagonally, both vertically and towards the user.

• Load Capacity (supplier stated) 110.0 and 220.0 kg (1 Lift motor, 2 lift motor load capacity.)
• Length of Frame 400 mm - 2400 mm (Suitable for cupboards of same length.)
• Range of Lift 0 mm - 430 mm (Adjustability in the vertical plane.)
• Depth 0 mm - 180 mm (Adjusatbility in the horizontal plane.)

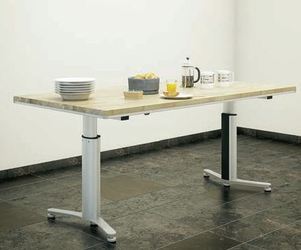

Model Freestanding Electric Worktop Lifts: A freestanding electrically adjustable worktop base.

• Length 1400 mm - 3000 mm (A worktop overhang of 200-400mm is recommended.)
• Load Capacity (supplier stated) 100 kg (Includes weight of worktop.)
• Height of Lift 0 mm - 300 mm (Adjustability of worktop height.)

Model Freestanding Manual Worktop Lifts: A freestanding manually adjustable worktop base. Comes with a crank handle.

• Length of Frame 1400 mm - 3000 mm (A worktop overhang of 200-400mm is recommended.)
• Load Capacity (supplier stated) 100 kg (Includes weight of worktop.)
• Height of Lift 0 mm - 300 mm (Adjustability of worktop height.)

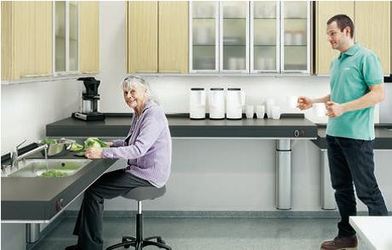

Model Wall Mounted Electric Worktop Lift: Include telescopic legs, brackets, cross brace and switch.

• Load Capacity (supplier stated) 100 kg (Includes weight of worktop.)
• Width 70 mm (Minimum width required for front edge of worktop to attach operating switches.)
• Length of Frame 600 mm - 3000 mm (Available in five size ranges. Increases in 400mm intervalls)
• Height of Lift 0 mm - 280 mm (Adjustability of worktop height.)

Model Wall Mounted Manual Worktop Lift: Includes telescopic legs, brackets, cross brace and crank handle.

• Width 100 mm (Minimum width required for front edge of worktop to attach crank.)
• Load Capacity (supplier stated) 100 kg (Includes weight of worktop.)
• Length of Frame 600 mm - 3000 mm (Available in five size ranges. Increases in 400mm intervalls)
• Height of Lift 0 mm - 300 mm (Adjustability of worktop height.)

Model Wall Mounted Worktop Brackets: Includes wall fittings and brackets. Suitable where height adjustment is required occasionally.

• Length 600 mm - 1400 mm
• Load Capacity (supplier stated) 75 kg (Includes weight of worktop.)
• Length Internal 800 mm (Distance between two brackets must not exceed 800mm.)
• Height of Lift 0 mm - 250 mm (Adjustability of worktop height using tools)

Suppliers (1)

• Arjo Australia Pty Ltd - https://ilcaustralia.org.au/suppliers/13439

  See supplier website or your telephone directory for location of your nearest store.

  • Arjo https://www.arjo.com.au
