Arjo Sara Plus Stand Up Hoist (PR05287)

https://ilcaustralia.org.au/products/5287

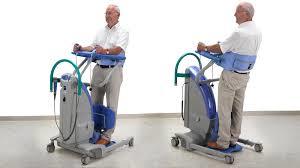

The Sara Plus is a battery operated, mobile, stand up hoist and rehab walker. It has an adjustable and removable knee pad and removable footplate. The hoist has an arm support (Arc-Rest) with handgrips. It has a range of sling options. A detachable commode seat and electronic scales are optional.

General Details

Options

Removable commode seat
Audible warning of low battery
Model with built in weighing scale
Hook & loop calf strap which wraps around the knee support.
Wrist straps (2)

Maintenance

Please refer to supplier and manufacturers manual for maintenance and safety warnings. Particular reference to black button on side of unit which allows for emergency lowering on both models.

Extra product information

Frame
Aluminium

Mast
Contains the hydraulic mechanism
Adjustable knee pad attaches to the base of the mast
Inverted U shaped push handle is located at the top of the mast
Hand control is attached point to the side of the mast

Boom
Supports contoured arm support ( Arc Rest ) for the occupant to rest the forearms
Hand grips attached to the Arc Rest
The Arc Rest is held at three points by the booms

Knee Pad (Proactive pad)
Height adjustable knee support allows the natural flexion of the ankle and forward movement of the lower leg during standing
Contoured, padded and height adjustable
Allows for the flexion of the ankle and the forward movement of the lower leg during standing

Footplate
Extends from the base of the knee pad attachment point
Contoured plastic with raised lines to assist with slip resistance
Can be removed and the occupant can take steps whilst using the arm support and hand grip to stabilise themselves

Castors
Dual swivel style with lockable options on rear castors

Hand Held Controls
Controls have a hand held option on an extendable cord
Directional arrows activate the boom and hoist leg movements
Hand held can hung on the cross bar of push handle when not in use

Fixed Controls
Fixed controls on both models are mounted near the top of the mast (back panel)
Both models have a built in weighing scale. A liquid crystal display indicates the occupants weight in kilograms

Power Source
A battery discharge indicator constantly displays the amount of power in the battery system and indicates when the battery needs charging
Two batteries and a charger are supplied with each model
Approx 100lifts in a fully charged battery

Slings
2 types of slings are available in 4 sizes, which are colour coded.
An underarm one band sling in padded material or sheepskin. It has a trunk support band that crosses in front of the occupant and is attached by hook and loop. This is to be used when weight is taken through the lower limbs and feet are supported on the footplate.
A support sling with back support as well as leg extensions that fit under the legs to attach to two points located at the junction of boom and spreader bar. This sling gives extra support to the occupant.
The attachment type is the ball and cord. The cord locks into position in cleats on front of the arm supports.

Commode Seat
Both models can have a removable commode seat option
The attachment point is on the base legs behind the front castor
A handle attached to the back of the pan assists with positioning

Manufacturer/Country

Arjo/Sweden

Websites

Arjo Sara Plus - https://www.arjo.com/en-au/products/safe-patient-handling/standing-and-raising-aid/sara-plus/

Models / Specifications

Model Sara Plus Stand Up Hoist: One Model Only with a range of options

• Height of Lift 906 mm - 1497 mm
• Width of Base Closed 646 mm
• Width of Base Internal 1002 mm
• Height 1195 mm
• Height of Base 116 mm
• Length of Base 1036 mm
• Weight Overall 85 kg
• Load Capacity (supplier stated) 190 kg
