Pathfinder Tactile Ground Surface Indicators (PR06222)

13485 pr06222%20pathfinder%20tactile%20ground%20surface%20indicators

Pathfinder Tactile Ground Surface Indicators

https://ilcaustralia.org.au/products/6222

A tactile ground surface indicator consisting of discrete plastic domes or domes on a connecting backing strip. These can be applied to a wide range of existing ground surfaces including paving or concrete after it has been laid. Available in plastic (polyurethane) and metal. One model of discrete domes can be installed into carpet or other soft flooring.

General Details

Manufacturer/Country
Contact Supplier for Details
Websites
Pathfinder Systems - Tactile Indicators - http://www.pathfindersystems.com.au/tactile_polyurethane

Models / Specifications

Model Hazard style 2: Tactile indicators with a bladed shaft. Six indicators adjoined with a single blade, which can be recessed into the substrate.
  • Thickness 5 mm
  • Diameter 35 mm
Model Directional style: Indicators which have a bladed shaft. The directional indicators are set into the substrate individually, via a saw cut groove. Not recommended for use in carpet.
  • Thickness 5 mm
  • Width Overall 35 mm
  • Length Overall 287 mm
Model Hazard style 1: Tactile indicators with a single shaft. Also called stud indicators. Individual indicators, which are set into the substrate singly, via a drilled hole. Recommended by the manufacturer for carpet, vinyl and other soft floor coverings.
  • Width Overall 35 mm
  • Length Overall 287 mm
  • Thickness 5 mm

Suppliers (0)

    Agents (0)

      Importers (0)

        Manufacturers (0)

          Images

          13486 pr06222%20directional%20indicators%20with%20bladed%20shaft

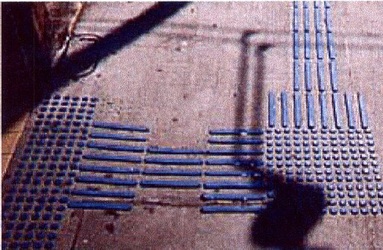

          Directional indicators with bladed shaft

          Maintenance

          Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.

          Standards

          Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing, and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For more information about standards see http://www.ilcaustralia.org.au/Using_Assistive_Technology/standards_regulation
