Nova Pacer Rollator (PR07586)

https://ilcaustralia.org.au/products/7586

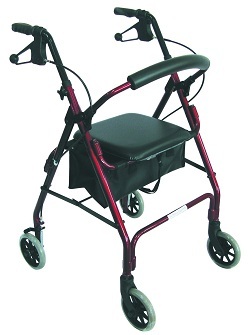

A four wheel, folding, mobile anodized aluminium walking frame. The walker contains a seat which folds up with a removable basket underneath and removable curved back support and cable brakes. The height of the armrests are adjustable. The walker is available in three colours and has a a choice of 6 or 8 inch wheels.

General Details

Height adjustment mechanism

Spring-loaded push button. Depress and hold down the spring-loaded button whilst sliding the extension leg up or down to the desired set of holes. The extension leg height should be determined by the users own height to ensure the most effective and safe position. Make sure the spring-loaded button is fully extended through the desired hole before putting weight on the item.

Walking frame brakes

Push down brakes activate by pushing down on the handles or by sitting on the seat. Cable Brakes activate by squeezing the brake handle towards the hand grip (e.g. similar to bicycle brakes). They can be applied temporarily or locked into position. Castor brakes are activated by pushing the lever down with your foot.

Folding Mechanism

Spring-loaded push button: depress and hold down the push button whilst folding in the sides of the frame. When unfolding ensure the buttons lock into place. Pull cord: pull upwards on the wooden ball to fold the front and back legs together.

Extra product information

FRAME: Frame is made from aluminium.

BACKREST: Foam covered backrest.

HANDLE/S: Height adjustable. Made from contoured foam plastic.

CASTORS: Front castors are single wheels which are full swivel. Each rear castors has double wheels which are fixed swivel. All castors are puncture resistant.

BRAKES: Wheeled walking frame has "push down" brakes. When the user pushes down on the handles or sits on the seat, sprung rear wheels allow the frame to make contact with the ground which then acts as a brake.

Manufacturer/Country

Taiwan

Websites

Nova Pacer - http://www.gmsrehab.com.au/images/mobilitycatalogue.pdf

Models / Specifications

Model Nova Pacer - 6inch wheels: 6inch wheels

• Height of Seat from Ground 560.0 mm
• Height of Handle 810 mm - 920 mm
• Weight Overall 5.9 kg
• Diameter of Castor 150 mm
• Width of Seat 300 mm
• Load Capacity (supplier stated) 120 kg

Model Nova Pacer Delux - 8inch wheels: 8inch wheels
