Talley B.A.S.E. Seating Systems (PR07658)

https://ilcaustralia.org.au/products/7658

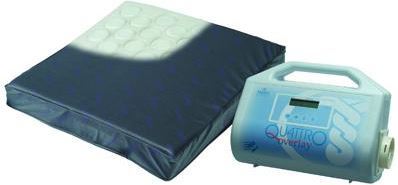

The B.A.S.E range of cushions feature rows of interconnected air bellows that adapt to body contours for even pressure distribution. For those at high risk of pressure injury. The B.A.S.E Recliner Mat and Sequential Cushion system feature a 1-in-4 alternating pressure cycle and may be used with the mains power pump used for the Quattro Overlay or Quattro Plus mattress systems or it may be used with a smaller mobile pump. The B.A.S.E Alternating Cushion has a one in two alternating pressure cycle and uses a mains power pump. The B.A.S.E Flotation Cushion does not alternate cycles and has a pressure adjuster to ensure the right amount of air is in the cushion during use.

General Details

Caution

All cushions must be monitored to prevent 'bottoming out'. This occurs when the user's weight bears down so hard on the product material that it is flattened and the bony parts are pressed against the surface below the cushion. Where bottoming out occurs even with correct use (eg correct choice and depth of foam, correct inflation level) , a different product may need to be considered.

Extra product information

OPERATION: Alternating cushion cycles 1-in-2 over 10 minutes, while Sequential and Recliner Mat cushions cycle at 1-in-4 over 15 minutes (mains pump); variable cycle time with mobile pump.

MATERIALS: Flame retardant foam surround, polyurethane nylon cushion cover

BATTERY (mobile pump): A fully charged battery can operate the cushion for in excess of 20hrs. It can be charged while the cushion is in use.

SAFETY: Visual and audible indicators for operating and fault status.

MAINTENANCE: If a cell is punctured, a row of cells may be removed and replaced.

APPLICATION: The supplier states that the cushion is appropriate for a person at high risk of developing pressure areas.

Manufacturer/Country

Talley Group / UK

Websites

Talley Base Sequential Cushion - http://ilsau.com.au/product/talley-base-sequential-cushion/

Models / Specifications

Model B.A.S.E Alternating Seating System: Only available with mains pump

• Weight Overall 1.9 kg
• Width 430 mm
• Load Capacity (supplier stated) 102 kg
• Number of Air Cells 48 units
• Length 430 mm
• Depth 70 mm

Model B.A.S.E Flotation Seating System: Available in two heights

• Length 430 mm
• Number of Air Cells 48 units
• Load Capacity (supplier stated) 102.0 and 127.0 kg (For flotation models 70mm and 100mm respectively.)
• Weight Overall 1.5 and 2.0 kg (For flotation models 70mm and 100mm respectively.)
• Width 430 mm
• Height Overall 70.0 and 100.0 mm (For flotation models 70mm and 100mm respectively.)

Model B.A.S.E Recliner Mat: Available with mains or mobile pump

• Weight Overall 3.9 kg
• Load Capacity (supplier stated) 127 kg
• Number of Air Cells 120 units
• Width 430 mm
• Depth 70 mm
• Length 1080 mm

Model HP103 Pressure Adjuster: For B.A.S.E. Flotation Cushions

• Weight of Pump 70 mg
• Height of Pump 165 mm
• Depth of Pump 45 mm
• Weight of Pump 200 g

Model B.A.S.E Sequential Seating System: Available with mains or mobile pump

• Weight Overall 1.9 kg
• Length 430 mm
• Load Capacity (supplier stated) 127 kg
• Width 430 mm
• Number of Keys/ Cells 48 units
• Depth 70 mm

Model Mains Pump: For B.A.S.E Sequential, Recliner Mat and Alternating Cushions

• Width of Pump 325 mm
• Height of Pump 233 mm
• Depth of Pump 165 mm
• Weight of Pump 3.4 kg

Model Mobile Pump: For B.A.S.E Sequential and Recliner Mat Cushions

• Width of Pump 205 mm
• Height of Pump 84 mm
• Depth of Pump 205 mm
• Weight of Pump 1.5 kg
