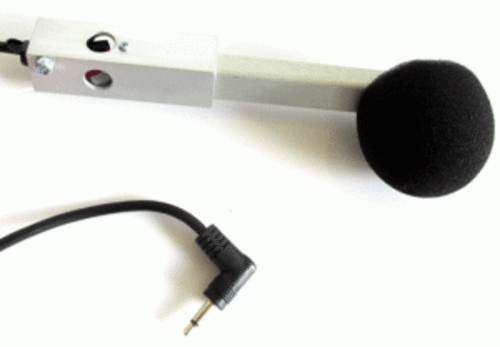

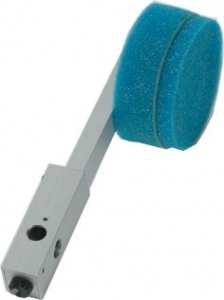

This snap-action switch has a foam pad and is designed to be operated by the user's head movement. The activation force can be adjusted. A mounting collar permits the switch to be flipped away when not required.
General Details
Extra product information
INTERFACE: 3.5mm male monoplug.
METHOD OF USE: Designed for activation by lateral head rotation. Individualised positioning and mounting of the switch is required. Can be used to operate a range of equipment that is designed for switch control including communication devices, computer software, environmental control equipment and some toys.
OPERATION: The switch is operated by pressing anywhere on the surface of the activation plate which results in the arm swinging away from the user in a unilateral direction. The arm returns to neutral position when pressure is released.
FEEDBACK: Movement of the switch arm and auditory click.
COLOURS: Blue foam only.
MATERIALS: Aluminium base with foam covering on cheek pad.
FEATURES: Short : 12cm (CM-8), or with a swing away collar fixtures that allows the switch to be easily positioned out of reach when required. Option of 1/4" or 3/8" diameter frame attachment. Please specify when ordering.
Manufacturer/Country
Contact Supplier for Details
Warranty
Contact Supplier for Details
Websites
- Lever Switch - http://www.zyteq.com.au/products/switches_and_connectors
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
Models / Specifications
Model Short Lever Switch with mount collar (swing away): Short Lever Switch - CM-9B-2, w/mount collar (swing away) for 3/8 ” rod
Model Short Lever Switch with mount collar: Short Lever Switch - CM-9A-1 - w/mount clamp post for 1/4 ” rod
Model Short Lever Switch: Short Lever Switch - CM-9-1 - no mount hardware
- Diameter of Button, Dial or Key 60 mm
- Activation Pressure 110 g
- Weight Overall 110 g
- Length 180 mm
Features
Contact listed suppliers to confirm features, options and models available.
Set Up or Installation
-
Plug Type:
- 3.5mm / 1/8 Mono
Standard Features Included
-
Operational feedback:
- Auditory click
- Soft tactile
-
Switch Modes:
- Direct
-
Switch Material :
- foam
- plastic
-
Switch Type:
- Lever
- Mechanical
- Single
- Wired
Optional Accessories
-
Switch Accessories:
- Mounts
Suppliers (1)
Select a state below to view suppliers located in that state. Some suppliers may distribute to other states or nationally. Please click the supplier's name for more information on that supplier.
All Suppliers
Zyteq Pty Ltd (South Melbourne)
| Supplier Code | Price & Price Notes | Hire? | Repair? | Availability |
|---|---|---|---|---|
| 262-0519-00 | 215.0 - 230.0 (with mount collar) (Purchase and Return Available)) | no | yes | Via order |
VIC Suppliers
Zyteq Pty Ltd (South Melbourne)
| Supplier Code | Price & Price Notes | Hire? | Repair? | Availability |
|---|---|---|---|---|
| 262-0519-00 | 215.0 - 230.0 (with mount collar) (Purchase and Return Available)) | no | yes | Via order |
