Concord Range Of Lifts (PR08385)
Concord Range Of Lifts
https://ilcaustralia.org.au/products/8385
A range of vertical lifts that transport a person, in a wheelchair or standing, between two levels up to 15000mm(50') apart, with up to seven stops. Suitable for commercial and residential use.
General Details
- Options
- A range of doors and gates
- Overspeed governor
- Car top inspection station
- Egg crate style ceilings
- Telephone box and telephone
- Custom carriage sizes
- Customised interior
- Variety of lock types
- Variety of call station types- Extra product information
The lift has a melamine and steel carriage and steel frame. It features skid resistant flooring, a solid ceiling with pot lights, digital floor indicator in carriage, a handrail and "car in use" illuminated hall buttons and car buttons. It has a 1:2 cable hydraulic drive system constructed from steel.
A pit will need to be dug for installation of up to 305mm(12").
CONTROLS are fully automatic, single touch push buttons or constant pressure push
buttons. Call stations are found at each level.
POWER SOURCE is mains power 3 phase or 1 phase.
DRIVE SYSTEM is 1 to 2 cable hydraulic.
SAFETY FEATURES include emergency lowering valve at pump unit, emergency battery lowering with automatic recharging system, emergency lighting, stop button and alarm in car, upper and lower limit switches, slack/broken cable safety device.- Manufacturer/Country
- Contact Supplier for Details
- Websites
- - http://concordelevator.in/passenger-elevators.html
Models / Specifications
- Model Gearless Traction Lift: Gearless traction technology for quiet rides.
-
- Height of Lift 12240.0 and 18290.0 mm (Two travel height options. Maximum 6 stops.)
- Load Capacity (supplier stated) 340 kg (Standard. Optional capacity 431Kg.)
- Model Eclipse: Customisable elevator. Does not require a seperate machine room.
-
- Load Capacity (supplier stated) 340 kg (Optional capacity of 453Kg)
- Height of Lift 15240 mm - 18290 mm (Two end of range heights available. Maximum 6 stops.)
- Model Infinity: Hydraulic lift. Available in a standard and heavy duty configurations.
-
- Width Internal 914 mm (Customisable.)
- Load Capacity (supplier stated) 340.0, 431.0, or 454.0 kg (Standard and optional load capacities.)
- Depth Internal 676 mm (Customisable.)
- Model Telecab: Runs on a guide rail system through a floor cut out.
-
- Load Capacity (supplier stated) 227 kg
- Width of Door Access 762 mm
- Height of Lift 6000 mm (Maximum 2 stops.)
- Depth Internal 1168 mm
- Model Infinity HD: Same options as the Infinity, heavy duty model.
-
- Load Capacity (supplier stated) 435.0 and 635.0 kg
Suppliers (0)
Agents (0)
Importers (0)
Manufacturers (0)
Images

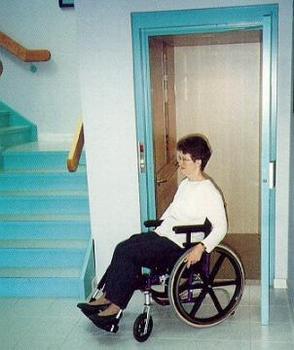

Concord Infinity Residential Elevator
Maintenance
Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.
Standards
Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing, and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For more information about standards see http://www.ilcaustralia.org.au/Using_Assistive_Technology/standards_regulation
